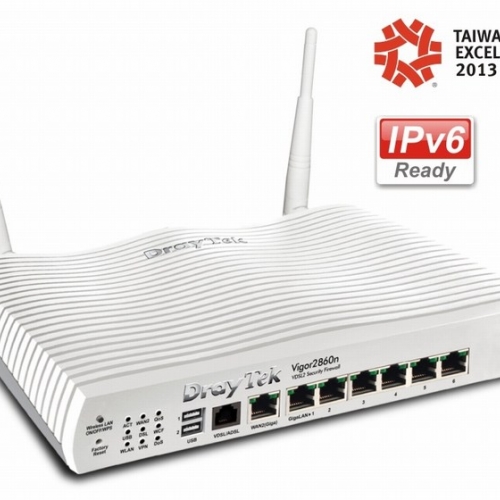

Draytek Vigor2860n

Draytek Vigor2860n

-       Specification as the same with Vigor2860, but included: Wireless Access point, 802.11B/G/N. WDS, Multi SSID (Isolate member, Isolate VPN), Wireless Rate control (Giới hạn băng thông cho SSID).

-       Support IPTV over Wireless

-       Wireless on/off/WPS Button

-       VDSL2/ADSL2+ Fall-back

-       Fail-over and Load Balancing with a second WAN through a Gigabit Ethernet WAN port

-       Object-based SPI Firewall and CSM (Content Security Management) for network security

-       2 USB ports for 3G/4G mobile, file sharing and network printers

-       32 VPN tunnels with comprehensive secure protocols

-       VLAN for secure and efficient workgroup management

-       6 x Gigabit LAN ports

-       Enterprise class IEEE 802.11n WLAN AP

-       Support Smart Monitor Traffic Analyzer (30-nodes)

-       Flexible Network Management



FEATURES

1. VDSL2/ADSL2/2+

-       ITU-T G.993.2 (VDSL2)

-       ITU-T G.992.1/3/5 (ADSL1/2/2+) Annex A & Annex B

-       DSL Forum Performance Specification: ADSL TR-048/67, TR-100; VDSL: WT-114

-       Erasure Decoding, Increased Interleaver Depth and Re-transmission

-       EFM (IEEE 802.3 ah)

-       VDSL2 Profile: up to 30a

2. WAN Protocol

-       DSL (WAN-1)/Giga Ethernet (WAN-2)

-       DHCP Client

-       Static IP

-       PPPoE

-       PPTP/L2TP (WAN-2 only)

-       PPPoA (ADSL2 only)

-       802.1q Multi-VLAN Tagging

-       USB (WAN-3)

-       PPP/DHCP

-       IPv6

-       Tunnel Mode: TSPC, AICCU, 6rd, Static 6in4

-       Dual Stack: PPP, DHCPv6 Client, Static IPv6

3. USB

-       3G (HSDPA) as WAN

-       Printer Sharing

-       File System

-       Support FAT32 File System

-       Support FTP Function for File Sharing

-       Support Samba for File Sharing

4. VPN

-       Up to 32 VPN Tunnels

-       Protocol : PPTP, IPsec, L2TP, L2TP over IPsec

-       Encryption : MPPE and Hardware-based AES/DES/3DES

-       Authentication : MD5, SHA-1

-       IKE Authentication : Pre-shared Key and Digital Signature (X.509)

-       LAN-to-LAN, Teleworker-to-LAN

-       DHCP over IPsec

-       IPsec NAT-traversal (NAT-T)

-       Dead Peer Detection (DPD)

-       VPN Pass-through

-       VPN Wizard

-       mOTP

-       SSL VPN: 16 Tunnels

-       VPN Trunk (Load Balance/Backup)

5. Multi-WAN

-       Load-Balance/Route Policy

-       (The VDSL2/ADSL2+ interface, Gigabit Ethernet interface and USB mobile can be used either for WAN-backup or load balancing.)

-       WAN Connection Failover

6. CSM (Content Security Management)

-       IM/P2P Application

-       GlobalView Web Content Filter

-       URL Content Filter :

-       URL Keyword Blocking (Whitelist and Blacklist)

-       Java Applet, Cookies, Active X, Compressed,  Executable, Multimedia File Blocking

-       Excepting Subnets

7. Bandwidth Management

-       QoS

-       Guarantee Bandwidth for VoIP

-       Class-based Bandwidth Guarantee by User-defined Traffic Categories

-       DiffServ Code Point Classifying

-       4-level Priority for Each Direction (Inbound/Outbound)

-       Bandwidth Borrowed

-       Bndwidth/Session Limitation

-       Layer-2 (802.1p) and Layer-3 (TOS/DSCP) QoS Mapping

8. Network Feature

-       Packet Forwarding Acceleration

-       DHCP Client/Relay/Server

-       IGMP Snooping/Proxy V2 and V3

-       Triple-Play Application

-       Dynamic DNS

-       NTP Client

-       Call Scheduling

-       RADIUS Client

-       DNS Cache/Proxy and LAN DNS

-       UPnP 30 sessions

-       Multiple Subnets

-       Port-based/Tag-based VLAN (802.1q)

-       Routing Protocol:

-       Static Routing

-       RIP V2

9. Network Management

-       Web-based User Interface (HTTP/HTTPS)

-       Quick Start Wizard

-       CLI (Command Line Interface, Telnet/SSH)

-       Administration Access Control

-       Configuration Backup/Restore

-       Built-in Diagnostic Function

-       Firmware Upgrade via TFTP/FTP/HTTP/TR-069

-       Logging via Syslog

-       SNMP Management MIB-II

-       Management Session Time Out

-       2-level Management (Admin/User Mode)

-       TR-069

-       TR-104

-       LAN Port Monitoring

-       Support Smart Monitor (30-nodes)

-       Central AP Management

-       Central VPN Management (Up to 8 Remote Routers)



10. Firewall

-       Multi-NAT, DMZ Host, Port-redirection and Open Port

-       Object-based Firewall, Object IPv6, Group IPv6

-       MAC Address Filter

-       SPI (Stateful Packet Inspection) (Flow Track)

-       DoS/DDoS Prevention

-       IP Address Anti-spoofing

-       E-mail Alert and Logging via Syslog

-       Bind IP to MAC Address

-       Time Schedule Control

-       User Management



11. Wireless AP

-       802.11n WLAN with Single Band 2.4 GHz Frequency

-       Wireless Client List

-       Wireless LAN Isolation

-       64/128-bit WEP

-       WPA/WPA2

-       Wireless Wizard

-       Hidden SSID

-       WPS

-       MAC Address Access Control

-       Access Point Discovery

-       WDS (Wireless Distribution System)

-       802.1x Authentication

-       Multiple SSID

-       Wireless Rate-control

-       IEEE802.11e: WMM (Wi-Fi Multimedia)

-       SSID VLAN Grouping with LAN Port (Port-based VLAN)

-       Sản xuất tại Đài loan.

-       Bảo hành: 12 tháng.
