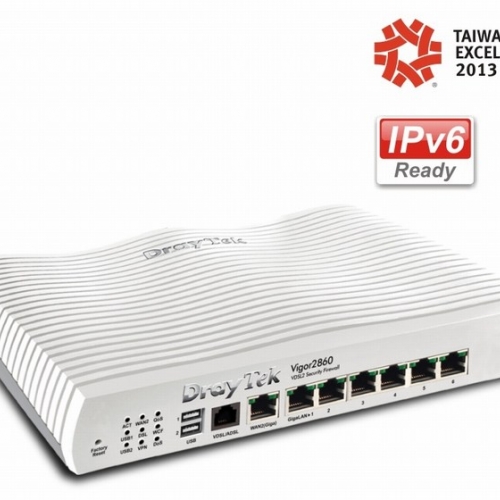

Draytek Vigor2860

Draytek Vigor2860

-       VDSL2/ADSL2+ Fall-back

-       1 port VDSL/ADSL2+ & 1 Giga WAN (10/100/1000Mbps) connect to FTTH/ADSL, Load balancing & Backup link.

-       6 Gigabit LAN port with VLAN, Rate Limit control.

-       NAT throughput WAN2 upto 300Mbps

-       VPN sever with 32VPN tunnels (16 SSL VPN tunnels), 60Mbps VPN bandwith for IPSec. Easy for Branch-to-office, Teleworker- to-Office.

-       Bandwith management & Limit Session, QoS Function. Dynamic DNS; IP Alias for multi-NAT; Syslog, DNS cache & proxy. IP base & MAC add Internet Access Control.

-       2 USB port connect Mobile HDD for File Server, 3G modem or USB printer.

-       Firewall security with NAT, DoS & DDoS, DMZ, Packet Filtering, Multi Subnets.

-       Fail-over and Load Balancing with a second WAN through a Gigabit Ethernet WAN port

-       Object-based SPI Firewall and CSM (Content Security Management) for network security

-       Support Smart Monitor Traffic Analyzer (30-nodes)

-       Flexible Network Management



FEATURES

1. VDSL2/ADSL2/2+

-       ITU-T G.993.2 (VDSL2)

-       ITU-T G.992.1/3/5 (ADSL1/2/2+) Annex A & Annex B

-       DSL Forum Performance Specification: ADSL TR-048/67, TR-100; VDSL: WT-114

-       Erasure Decoding, Increased Interleaver Depth and Re-transmission

-       EFM (IEEE 802.3 ah)

-       VDSL2 Profile: up to 30a

2. WAN Protocol

-       DSL (WAN-1)/Giga Ethernet (WAN-2)

-       DHCP Client

-       Static IP

-       PPPoE

-       PPTP / L2TP (WAN-2 only)

-       PPPoA (ADSL2 only)

-       802.1q Multi-VLAN Tagging

-       USB (WAN-3)

-       PPP/DHCP

-       IPv6

-       Tunnel Mode: TSPC, AICCU, 6rd, Static 6in4

-       Dual Stack: PPP, DHCPv6 Client, Static IPv6



 3. USB

-       3.5G (HSDPA) as WAN

-       Printer Sharing

-       File System :

o   Support FAT32 File System

o   Support FTP Function for File Sharing

o   Support Samba for File Sharing

-       LTE USB mobile Support List Please Contact  support@draytek.com



4. VPN

-       Up to 32 VPN Tunnels

-       Protocol : PPTP, IPsec, L2TP, L2TP over IPsec

-       Encryption : MPPE and Hardware-based AES/DES/3DES

-       Authentication : MD5, SHA-1

-       IKE Authentication : Pre-shared Key and Digital Signature (X.509)

-       LAN-to-LAN, Host-to-LAN

-       DHCP over IPsec

-       IPsec NAT-traversal (NAT-T)

-       Dead Peer Detection (DPD)

-       VPN Pass-through

-       VPN Wizard

-       mOTP

-       SSL VPN: 16 Tunnels

-       VPN Trunk (Load Balance/Backup)



5. Multi-WAN

-       Load-Balance/Route Policy (The VDSL2/ADSL2+ interface, Gigabit Ethernet interface and USB mobile can be used either for WAN-backup or load balancing.)

-       WAN Connection Failover



6. CSM (Content Security Management)

-       IM/P2P Application

-       GlobalView Web Content Filter (Powered by )

-       URL Content Filter:

o   URL Keyword Blocking (Whitelist and Blacklist)

o   Java Applet, Cookies, Active X, Compressed,  Executable, Multimedia File Blocking

o   Excepting Subnets



7. Bandwidth Management

-       QoS:

o   Guarantee Bandwidth for VoIP

o   Class-based Bandwidth Guarantee by User-defined Traffic Categories

o   DiffServ Code Point Classifying

o   4-level Priority for Each Direction (Inbound/Outbound)

o   Bandwidth Borrowed



-       Bndwidth/Session Limitation

-       Layer-2 (802.1p) and Layer-3 (TOS/DSCP) QoS Mapping



8. Network Feature

-       Packet Forwarding Acceleration*

-       DHCP Client/Relay/Server

-       IGMP Snooping/Proxy V2 and V3

-       Triple-Play Application

-       Dynamic DNS

-       NTP Client

-       Call Scheduling

-       RADIUS Client

-       DNS Cache/Proxy and LAN DNS

-       UPnP 30 sessions

-       Multiple Subnets

-       Port-based/Tag-based VLAN (802.1q)

-       Routing Protocol:◾Static Routing

-       RIP V2



9. Network Management

-       Web-based User Interface (HTTP/HTTPS)

-       Quick Start Wizard

-       CLI (Command Line Interface, Telnet/SSH)

-       Administration Access Control

-       Configuration Backup/Restore

-       Built-in Diagnostic Function

-       Firmware Upgrade via TFTP/FTP/HTTP/TR-069

-       Logging via Syslog

-       SNMP Management MIB-II

-       Management Session Time Out

-       2-level Management (Admin/User Mode)

-       TR-069

-       TR-104

-       LAN Port Monitoring

-       Support Smart Monitor (30 nodes)

-       Central AP Management

-       Central VPN Management (Up to 8 Remote Routers)



10. Firewall

-       Multi-NAT, DMZ Host, Port-redirection and Open Port

-       Object-based Firewall, Object IP v6, Group IPv6

-       MAC Address Filter

-       SPI (Stateful Packet Inspection) (Flow Track)

-       DoS/DDoS Prevention

-       IP Address Anti-spoofing

-       E-mail Alert and Logging via Syslog

-       Bind IP to MAC Address

-       Time Schedule Control

-       User Management

-       Sản xuất tại Đài loan.

-       Bảo hành: 12 tháng.
