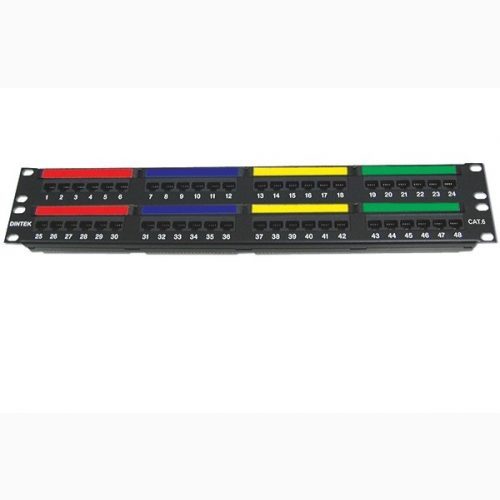

Patch panel 48 Port Dintek CAT.6 19 inch

Patch panel 48 Port Dintek CAT.6 19 inch

-         Patch panel 48 Port Dintek, CAT.6, 19 inch rackmount, Krone type

-         Product Code: 1402-04012

Cat.6 19” 110/ krone dual type Patch Panel 24 ports, 1U size with color label, Component level

-         The DINTEK PowerMAX Connectivity solution is comprised of a system of patch panels, work area outlets, and patch cords to enable users to specify the highest level of channel performance available.

-         Our Category 6 patch panels are designed to exceed ANSI/TIA-568-C.2 performance specifications and are backward compatible with lower level cabling products.

-         DINTEK Category 6 panels support both T568A and T568B wiring schemes and can be terminated with an industry standard 110 or Krone installation tool. Panels include a mounting slot for the DINTEK cable management bar, which easily mounts to the back of the panel, for improved routing and strain releif functionality.

-         Combined with other DINTEK PowerMAX Products, they are the perfect solution to your voice and data communications needs.

FEATURES

-         Meet ANSI/TIA-568-C.2 Cat.6 component level connecting hardware       performance  requirements

-         Stripped window label for easy management

-         110 and krone dual type IDC termination

-         19” 24 port patch panel, 1U size & 48 port panel, 2U size.

-         Accept 22~26AWG, stranded or solid wire

-         Modular jack meet FCC part 68

-         Wiring: T568A/B

-         Optional rear cable management

ENVIRONMENTAL CONDITIONS

-         Temperature range:

-         Storage: -40 to +70℃

-         Operational: -10 to +60℃

-         Relative humidity (operational): max. non-condensing 93%

ELECTRICAL CHARACTERISTICS

-         Insulation resistance between any two conductors:  500 MegaOhms min.

-         Dielectric with standing voltage: 1000V, RMS, 60HZ, 1 MIN.

-         Contact resistance: 20 MilliOhms max.

-         Current rating: 1.5 AMPS at 20℃

PHYSICAL CHARACTERISTICS

-         Housing: High-impact, flame-retardant plastic, UL94V-0 rated, Spring wire / contact blades

-         Contact material: Phosphor bronze alloy

-         Plate: SPCC-SD 16G

MECHANICAL CHARACTERISTICS

-         Total mating force: 800 GRAMS for a 8 wire leads minimum.

-         Retention: 30lbs min between the jack and plug.

-         Insertion/Extraction life: 750 cycles minimum.

-         Number of IDC terminations: 200 minimum.

STANDARDS

-         UL Verified

-         ISO/IEC11801 2nd edition

-         ANSI/TIA Standard 568-C.2

-         CENELEC EN 50173

APPLICATIONS

-         Voice; T1; ISDN

-         10BASE-T (IEEE 802.3)

-         16Mbps Token Ring (IEEE802.5)

-         100VG-AnyLAN (IEEE802.12)

-         100BASE-T Ethernet (IEEE802.3)

-         155/622Mbps 1.2/2.4 Gbps ATM

-         1000Mbps Gigabit Ethernet

-         550MHz Broadband Video

-         Sản xuất tại Taiwan.
