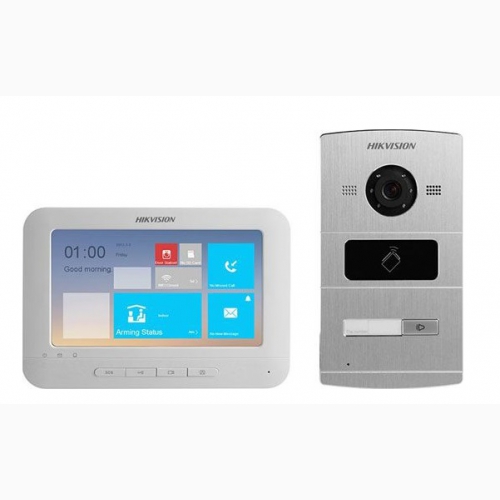

Bộ điện thoại gọi cửa có thu hình IP HIKVISION DS-KIS601
Bộ điện thoại gọi cửa có thu hình IP HIKVISION DS-KIS601
Door Station
- Video intercom function.
- Access control function.
- Issues cards via door station, up to Max.256 cards.
Bộ điện thoại gọi cửa có thu hình IP HIKVISION DS-KIS601
Door Station
- Video intercom function.
- Access control function.
- Issues cards via door station, up to Max.256 cards.
- Card readers supported.
- Self-adaptive IR supplement.
- HD video surveilance.
- Noise suppression and echo cancellation.
- H.264 video video compress.
- Low illumination.
- Remote answering the call and unlocking via the app.
Indoor Station
- Hands-free audiovisual communication with the door station.
- 2-ch zone alarm supported.
- Supports monitoring door stations and external cameras.
- Remote unlocking via the app.
- 7-inch colorful FTF LCD with resolution 800x480.
- Capacitive touch screen and physical buttons.
- Noise suppression and echo cancellation.
- H.264 video compression.
Đặc tính kỹ thuật
Indoor Station | |
Model | DS-KH6310-WL |
System parameters | |
Processor | High-Performance Embedded SOC Processor |
Operation system | Embedded Linux Operation System |
Display parameters | |
Display screen | 7-Inch Colorful TFT LCD |
Display resolution | 800 × 480 |
Operation method | Capacitive Touch Screen, Physical Button |
Operation interface | Flattened UI Operation Interface |
Audio parameters | |
Audio parameters | Built-in Omnidirectional Microphone |
Audio output | Built-in Loudspeaker |
Audio compression standard | G.711U |
Audio compression rate | 64Kbps |
Audio quality | Noise Suppression and Echo Cancellation |
Network parameters | |
Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
Network protocol | TCP/IP, RTSP |
Alarm parameters | |
Alarm input | 2-ch Alarm Input Sensor |
Device interfaces | |
Network interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
RS-485 | 1 RS-485 Half-Duplex Port |
I/O output | 1 |
General | |
Memory | 256 M |
Power supply | 24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) 12 VDC |
Power consumption | ≤10 W |
Working temperature | 10° C to + 55° C (14° F to 131° F) |
Working humidity | 10% to 90% |
Dimensions(L × W × H) | 217 mm × 142 mm × 26 mm (8.5' × 5.6' × 1.0') |
Door Station | |
Model | DS-KV8102-IM |
System parameters | |
Processor | High-Performance Embedded SOC Processor |
Operation system | Embedded Linux Operation System |
Video parameters | |
Camera | CMOS Low IIIumination 1.3 MP HD Colorful Camera |
Video compression standard | H.264 |
Resolution | 1280 × 720 |
Video frame rate | 25 fps |
Audio parameters | |
Audio input | Built-in Omnidirecttional Microphone |
Audio output | Built-in Loudspeaker |
Audio compression standard | G.711 U |
Audio compression rate | 64 Kbps |
Audio quality | Noise Suppression and Echo Cancellation |
Access control parameters | |
Internal card reader | Built-in IC Card Reader |
Exit button | Exit Button for Opening the Door |
Door magnetic detection | Detects Door Magnetic Status |
Light supplement | |
Light supplement mode | IR Supplement |
Network parameters | |
Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
Network protocol | TCP/IP, RTSP |
Alarm parameters | |
Alarm input | Door Magnetic Alarm, Tampering Alarm |
Device interfaces | |
Network interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
RS-485 | 1 RS-485 Half-Duplex Port |
I/O input | 4 |
I/O output | 1 |
General | |
Indoor station access amount | 1 |
Material | Aluminum Alloy |
Power supply | 24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) 12 VDC |
Power consumption | ≤12 W |
Working temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
Working humidity | 10% to 90% |
IP protection level | IP 65 |
Dimensions (L x W x H) | 182 mm × 100 mm × 33 mm (7.17' × 3.94' × 1.30') |
