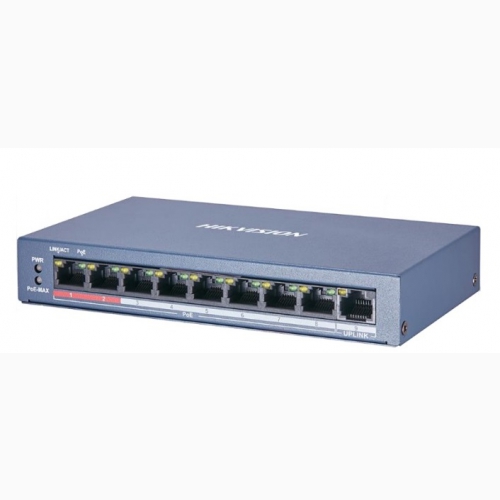

8-Port 100M PoE Switch HIKVISION DS-3E0109P-E/M(B)
8-Port 100M PoE Switch HIKVISION DS-3E0109P-E/M(B)
- 8 x 100M PoE ports and 1 x 100M Ethernet port.
- Supports IEEE802.3at/af.
- Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.
- Supports high priority ports.
- Supports 8-core power supply.
8-Port 100M PoE Switch HIKVISION DS-3E0109P-E/M(B)
- DS-3E0109P-E/M(B) is a layer 2 100M PoE switch. Based on wire speed forwarding, the switch supports Ethernet PoE power supply and extend mode. The power supply distance reaches as long as 250 m. It also supports prior and stable transmission of the important surveillance area video when connected to the high priority ports.
- 8 x 100M PoE ports and 1 x 100M Ethernet port.
- Supports IEEE802.3at/af.
- Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.
- Supports high priority ports.
- Supports 8-core power supply.
- Up to 250m transmission distance.
- PoE port with 6 KV surge protection.
- Supports PoE output power management.
- 100M network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Fan-free design with high reliability.
Đặc tính kỹ thuật
Model | DS-3E0109P-E/M(B) |
Network parameters | |
Port number | 8 x 100M PoE ports, 1 x 100M Ethernet port. |
Port type | RJ45 port, Full duplex, MDI/MDI-X adaptive |
Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
Processing type | Store-and-forward switching |
Ports with high priority | 1 to 2 ports |
Ports for long-distance transmission | 1 to 8 ports |
MAC address table | 2K |
Exchange capacity | 1.8 Gbps |
Packet forwarding rate | 1.339 Mpps |
Internal cache | 1 Mbits |
PoE power supply | |
Power supply standard | IEEE 802.3af, IEEE 802.3at |
Power supply cable core | Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply |
PoE port | 1 to 8 |
Max. port power | 30W |
Max. machine power | 60W |
Mechanical structure | |
Shell | Metal material, fan-free design |
weight | 0.35 kg (0.77 lb) |
Dimensions (L × H × D) | 170 mm × 27.6 mm × 93.1 mm (6.7inch × 1.1inch × 3.7inch) |
Environment | |
Operating temperature | 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F) |
Storage temperature | –40 ˚C to 85 ˚C (–40 ˚F to 185 ˚F) |
Relative humidity | 5% to 95% (no condensation) |
Power supply | |
Power supply specification | 48 VDC, 1.35 A |
- Bảo hành: 24 tháng.
