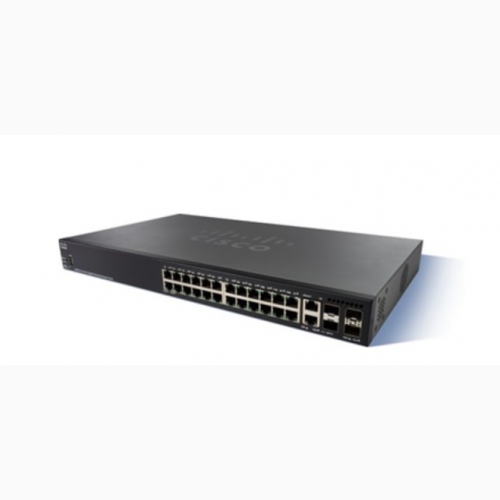

24-Port Gigabit Stackable Managed Switch CISCO SG350X-24-K9
24-Port Gigabit Stackable Managed Switch CISCO SG350X-24-K9
- Support 24-port GB + 4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+).
- Performance: Switching capacity 128 Gbps.
24-Port Gigabit Stackable Managed Switch CISCO SG350X-24-K9
- Support 24-port GB + 4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+).
- Performance: Switching capacity 128 Gbps.
- Stacking: Up to 4 units in a stack. Up to 208 ports managed as a single system with hardware failover.
Specification
Performance | |
Capacity in Mpps (64-Byte Packets) | 95.23 Mpps |
Switching Capacity (Gbps) | 128 Gbps |
Layer 2 switching | |
Spanning Tree Protocol | Standard 802.1d spanning tree support Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default Multiple spanning tree instances using 802.1s (MSTP); 16 instances are supported |
Port grouping/link aggregation | Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) - Up to 8 groups - Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad LAG |
VLAN | Support for up to 4094 active VLANs simultaneously; port-based and 802.1Q tag-based VLANs; MAC-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Guest VLAN, unauthenticated VLAN, protocol-based VLAN, IP subnet-based VLAN, CPE VLAN Dynamic VLAN assignment using RADIUS server along with 802.1x client authentication |
Voice VLAN | Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Autovoice capabilities deliver networkwide zero-touch deployment of voice endpoints and call control devices. |
Multicast TV VLAN | Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as multicast VLAN registration (MVR). |
Q-in-Q | VLANs transparently cross over a service provider network while isolating traffic among customers. |
GVRP/GARP | Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain. |
Unidirectional Link Detection (UDLD) | UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or port faults to prevent forwarding loops and blackholing of traffic in switched networks. |
DHCP relay at Layer 2 | Relay of DHCP traffic to DHCP server in a different VLAN. Works with DHCP option 82. |
IGMP (versions 1, 2, and 3) snooping | Internet Group Management Protocol (IGMP) limits bandwidth-intensive multicast traffic to only the requesters; supports 4K multicast groups (source-specific multicasting is also supported). |
IGMP querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router. |
HOL blocking | Head-of-line (HOL) blocking. |
Layer 3 | |
IPv4 routing | Wirespeed routing of IPv4 packets Up to 8K static routes and up to 256 IP interfaces |
Wirespeed IPv6 static routing | Up to 4K static routes and up to 200 IPv6 interfaces |
Layer 3 interface | Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface |
DHCP server | Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes Support for DHCP options |
DHCP relay at Layer 3 | Relay of DHCP traffic across IP domains |
User Datagram Protocol (UDP) relay | Relay of broadcast information across Layer 3 domains for application discovery or relaying of BOOTP/DHCP packets |
Stacking | |
Hardware stack | Up to 4 units in a stack. Up to 208 ports managed as a single system with hardware failover |
High availability | Fast stack failover delivers minimal traffic loss. Support link aggregation across multiple units in a stack |
Plug-and-play stacking configuration/management | Master/backup for resilient stack control Autonumbering Hot swap of units in stack Ring and chain stacking options, autostacking port speed, flexible stacking port options |
High-speed stack interconnects | Cost-effective high-speed 10G fiber and copper interfaces. Support LAG as stacking interconnects for even higher bandwidth. |
Security | |
SSH | SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH versions 1 and 2 are supported. |
SSL | Secure Sockets Layer (SSL) encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch. |
Quality of service | |
Priority levels | 8 hardware queues |
Scheduling | Strict priority and weighted round-robin (WRR) |
Class of service | Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/ToS/DSCP based; DiffServ; classification and remarking ACLs, trusted QoS Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS) |
Management | |
Web user interface | Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports simple and advanced mode, configuration, wizards, customizable dashboard, system maintenance, monitoring, online help, and universal search. |
SNMP | SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-based Security Model (USM) |
Discovery | |
Power Dedicated to PoE | 195W |
Number of Ports That Support PoE+ and PoE | 16 Port |
Number of Ports That Support 60W PoE, PoE+ and PoE | 8 Port |
Ports | |
Total System Ports | 24 GE + 4 10GE |
Network Ports | 24GE |
Uplink Ports | 2 10GE copper/SFP+ combo + 2 SFP+ |
Flash | 256 MB |
CPU | 800MHz (Dual-core) ARM |
CPU memory | 512 MB |
Packet buffer | 1.5 MB |
Environmental | |
Unit dimensions (W x H x D) | 440 x 44 x 350 mm (17.3 x 1.45 x 13.78 in) |
Unit Weight | 4.93 kg (10.41 lb) |
Power | 100 - 240V 47 - 63 Hz, internal, universal |
