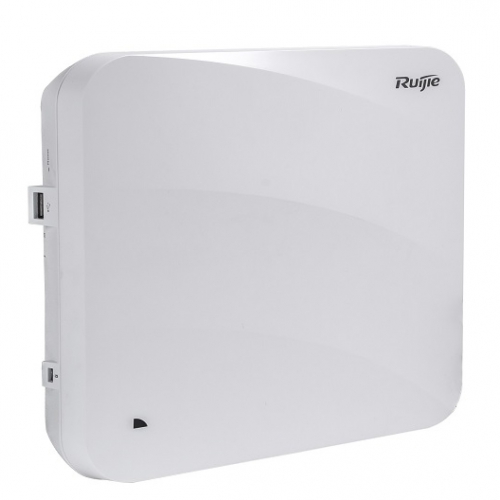

Wireless Access Point RUIJIE RG-AP840-I
Wireless Access Point RUIJIE RG-AP840-I
- Chuẩn 802.11a/b/g/n/ac.
- Băng tần Dual radio 2.4G + 5G, tổng tốc độ truy cập lên tới 5.2Gbps.
Wireless Access Point RUIJIE RG-AP840-I
- Chuẩn 802.11a/b/g/n/ac.
- Băng tần Dual radio 2.4G + 5G, tổng tốc độ truy cập lên tới 5.2Gbps.
- Hỗ trợ 3 x 10/100/1000M Ethernet port; 1 cổng console port.
- Tích hợp sẵn dịch vụ Ruijie Cloud miễn phí, không giới hạn về thời gian.
- Tích hợp sẵn các tính năng về Wi-Fi marketing
- Số luồng: 2×2 MIMO + 5G 4×4 MIMO.
- Công suất:
Specifications
Model | RG-AP840-I | |
Hardware specifications | ||
Radio | Dual-radio dual-band(2.4G+5G):2.4G 2×2 MIMO + 5G 4×4 MIMO | |
Protocol | Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac | |
Operating Bands | 802.11b/g/n: 2.4G ~ 2.483GHz 802.11a/n/ac/ax: 5.150 ~ 5.350GHz, 5.47 ~ 5.725GHz, 5.725 ~ 5.850GHz (vary depending on different countries) |
|
Spatial Streams | Up to 6: 2×2:2 in 2.4GHz, 4×4:4 in 5GHz | |
Max Throughput | Maximum throughput of 2.4G: 400Mbps Maximum throughput of 5G: 4.8Gbps Maximum throughput per AP: 5.2Gbps |
|
Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps,D QPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA (up to 1024-QAM) |
|
Antenna | Integrated antenna design | |
Antenna Gain | 2.4G: 3dBi 5G: 3dBi |
|
Service Ports | 3 10/100/1000M Ethernet ports (The LAN1 Port supports PoE in, LAN3 Port supports LAN & IoT module expansion with PoE out) | |
Management Port | 1 console port | |
USB | 1 USB 2.0 port | |
IoT Capability | BLE | |
Reset Button | Support | |
Anti-theft Lock | Support | |
LED Indicator | 1 LED indicator (Supports red, green, blue, orange and flashing mode, which indicates device access. The indicator can be switched off to silent mode.) | |
Transmit Power | ≤100mw (20dBm) (vary depending on different countries) | |
Adjustable Power | 1dBm | |
Power Supply | Local power supply (DC 48V/1A) (Power adapters are sold separately) PoE+ (802.3at) PoE (802.3af) – Not recommended: 5G radio is degraded to 2x2 MIMO, and the PoE out of the LAN3/ IoT port is disabled |
|
Power Consumption | <25.4W | |
Physical Specifications | ||
Temperature | Operating Temperature: -10°C to 50°C | |
Storage Temperature: -40°C to 70°C | ||
Humidity | Operating Humidity: 5% to 95% (non-condensing) | |
Storage Humidity: 5% to 95% (non-condensing) | ||
Installation Mode | Ceiling/wall-mountable | |
Dimensions | 220 × 220 x 48.85 mm (W x D x H) | |
Weight | 1.30kg | |
IP Rating | IP41 | |
Software Specifications | ||
WLAN | Maximum clients per AP | 1024 |
BSSID capacity | Up to 32 | |
SSID hiding | Support | |
5G Priority (Band Steering) | Support | |
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support | |
Remote Intelligent Perception Technology (RIPT) | Support | |
Intelligent device recognition technology | Support | |
Intelligent load balancing based on the number of users or traffic | Support | |
STA control | SSID/radio-based | |
Bandwidth control | STA/SSID/AP-based bandwidth control | |
Data encryption | WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3, WEP (64/128 bits) | |
PSK and web authentication | Support | |
PPSK authentication (For Employee) | Support (require wireless controller) | |
802.1x authentication | Support | |
PEAP authentication | Support | |
Data frame filtering | Whitelist, static/dynamic blacklist | |
User isolation | Support | |
Rogue AP detection and countermeasure | Support | |
Dynamic ACL assignment | Support | |
RADIUS | Support | |
CPU Protection Policy (CPP) | Support | |
Network Foundation Protection Policy (NFPP) | Support | |
IP | IPv4 and IPv6 address | Support |
Multicast routing | Multicast to unicast conversion | |
DHCP service | DHCP Snooping, Option 82, Server, Client | |
Management and Maintenance | Supported wireless LAN controllers | Ruijie WS Series Wireless Controller Ruijie MACC-Base Software Controller Ruijie Cloud (Public Cloud) |
Management protocol | Telnet, SSH, TFTP, Web | |
Wireless Intelligent AI Optimization Service (WIS) | Support | |
SNMP | SNMPV1,V2c,V3 | |
Syslog / Debug | Support | |
FAT/FIT/MACC mode switching | Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management |
- Bảo hành: 3 năm.
