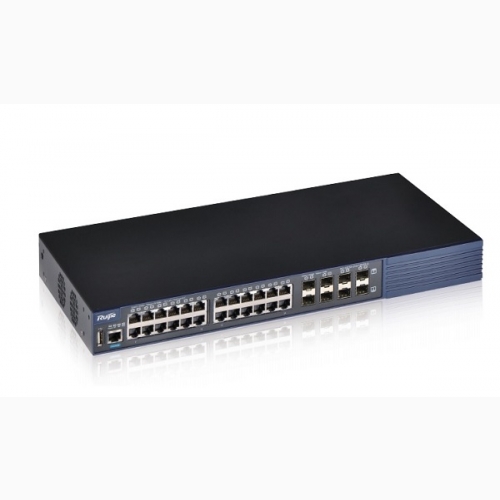

Switch Ruijie RG-S5750-24GT/8SFP-E
Switch Ruijie RG-S5750-24GT/8SFP-E
- RG-S5750-24GT/8SFP-E Ethernet Switch, 24-Port 10/100/1000Base-T, 8 GE SFP Combo Ports, 2 Extension Slots (Stack or Uplink), 1 USB 2.0.
- Hỗ trợ 24 cổng 10/100/1000BASE-T.
- Hỗ trợ 8 cổng SFP ports.
Switch Ruijie RG-S5750-24GT/8SFP-E
- RG-S5750-24GT/8SFP-E Ethernet Switch, 24-Port 10/100/1000Base-T, 8 GE SFP Combo Ports, 2 Extension Slots (Stack or Uplink), 1 USB 2.0.
- Hỗ trợ 24 cổng 10/100/1000BASE-T.
- Hỗ trợ 8 cổng SFP ports.
- Tốc độ chuyển mạch: 256Gbps.
- Tốc độ chuyển gói tin: 96Mpps.
- Nguồn điện: AC 100~240V, 50/60Hz.
- Kích thước (W x D x H): 440×260×44 mm.
- Nhiệt độ hoạt động: 0°C~50°C.
Đặc tính kỹ thuật
Model | RG-S5750-24GT/8SFP-E |
Ports | 24 10/100/1000BASE-T ports 8 100/1000BASE-X SFP ports (combo) |
Expansion Slots | 2 |
Expansion Modules | 1-port 10G SFP+ module 2-port 10G SFP+ module 4-port 10G SFP+ module 2-port 10/100/1000BASE-T / 100/1000BASE-X SFP (combo) module |
Management Ports | 1 console port 1 USB 2.0 port |
Switching Capacity | 256Gbps |
Packet Forwarding Rate | 96Mpps |
ARP Table | Up to 4,000 |
MAC Address | Up to 16K |
Routing Table Size | Up to 13K |
IP Host Entries (IPv4/IPv6) | Up to 13K |
ACL Entries | Up to 3,000 |
VLAN | 4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP |
QinQ | Basic QinQ, Flexible QinQ |
Link Aggregation | Support LACP |
Port Mirroring | Many-to-one mirroring, Flow-based mirroring, Over devices mirroring, AP-port mirroring, RSPAN |
Spanning Tree Protocols | IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard |
DHCP | DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay |
Multiple Spanning Tree Protocol (MSTP) Instances | 64 |
Maximum Aggregation Port (AP) | Up to 120 |
Virtual Routing and Forwarding (VRF) Instances | 512 |
VSU (Virtual Switch Unit) | Support (up to 8 stack members) |
L2 Features | MAC, ARP, VLAN, Basic QinQ, Flexible QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, DHCP, Jumbo frame, RLDP, LLDP, REUP, G.8032 ERPS, Layer 2 protocol tunnel |
Layer 3 Features | ARP proxy, Ping, Traceroute, Equal-Cost Multi-Path Routing (ECMP), URPF, Neighbor Discovery, ISATAP |
Layer 3 Protocols (IPv4) | Static routing, RIP, RIPng, BGP4, BGP4+, OSPFv2/v3, IS-IS |
IPv4 Features | Ping, Traceroute, URPF |
IPv6 Features | ICMPv6, IPv6 Ping, IPv6 Tracert, Manually configure local address, Automatically create local address, Neighbor Discovery, 0-128 bit mask, IPv4 over IPv6 tunnel, GRE tunnel |
Basic IPv6 Protocols | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping and IPv6 Tracert |
IPv6 Routing Protocols | Static routing, RIP, RIPng, BGP4, BGP4+, OSPFv2/v3 |
IPv6 Tunnel Features | IPv4 over IPv6 tunnel, GRE tunnel |
Multicast | IGMP v1/v2/v3, IGMP v1/v2/v3 snooping, IGMP proxy, IGMP filter, IGMP fast leave, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD snooping, MLD, PIM for IPv6, MSDP, Multicast static routing |
MPLS | MPLS L3 VPN |
G.8032 | Support |
ACL | Standard/Extended/Expert ACL, Extended MAC ACL, IPv6 ACL, ACL logging, ACL counter, ACL remark |
QoS | 802.1p/DSCP traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR,SP+WRR, SP+DRR; Input / output port-based speed limit; Port-based traffic recognition; Each port supports 8 queue priorities |
IPv6 ACL | Support |
Reliability | VSU (virtualization technology for virtualizing multiple devices into 1); RIPGR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol) |
Security | Binding of the IP address, MAC address, and port address; Binding of the IPv6, MAC address, and port address; Filter illegal MAC addresses; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; Restriction on the rate of ARP packets; Gateway anti-ARP spoofing; Broadcast suppression; Hierarchical management by administrators and password protection; RADIUS and TACACS+; AAA security authentication (IPv4/IPv6) in device login management; SSH and SSH V2.0; BPDU guard; IP source guard; CPP, NFPP; Port protection |
Manageability | SNMPv1/v2c/v3, CLI (Telnet / Console), RMON (1, 2, 4, 9), SSH, Syslog/Debug, NTP, FTP, TFTP |
Other Protocols | FTP, TFTP, DNS client |
Dimensions (W x D x H) | 440×260×44 mm |
Rack Height | 1RU |
Weight | 3.9kg |
MTBF | >200K hours |
Lightning Protection | 6KV |
RPS | Support |
Safety Standards | IEC 60950-1, EN 60950-1 |
Emission Standards | EN 300 386, EN 55022/55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11 |
Power Supply | Rated voltage range: 100V to 240V Maximum voltage range: 90V to 264V Frequency: 50-60Hz Rated current: 2A |
Power Consumption | 43W (w/o expansion modules) 60W (w/ expansion modules) |
Temperature | Operating temperature: 0°C to 50°C Storage temperature: -40°C to 70°C |
Humidity | Operating humidity: 10% to 90%RH Storage humidity: 5% to 95%RH |
- Bảo hành: 3 năm.
