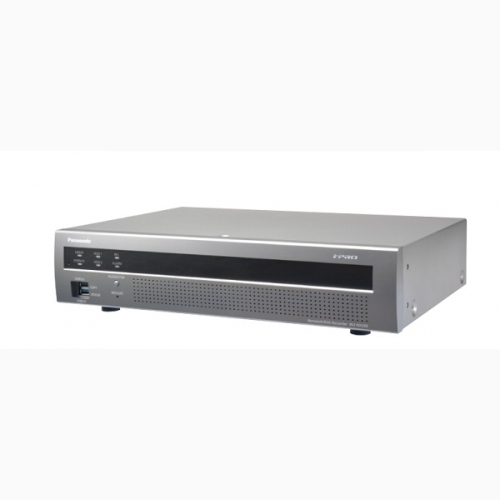

Đầu ghi hình IP 16 kênh PANASONIC WJ-NX200K/G
Đầu ghi hình IP 16 kênh PANASONIC WJ-NX200K/G
- WJ-NX200K/G là đầu ghi hình camera IP 16 kênh, cho phép mở rộng lên đến 32 kênh (cài thêm 02 gói mở rộng WJ-NXE20W).
- Chuẩn nén hình: H.265, H.264, JPEG.
Đầu ghi hình IP 16 kênh PANASONIC WJ-NX200K/G
- WJ-NX200K/G là đầu ghi hình camera IP 16 kênh, cho phép mở rộng lên đến 32 kênh (cài thêm 02 gói mở rộng WJ-NXE20W).
- Chuẩn nén hình: H.265, H.264, JPEG.
- Giảm thiểu tối đa không gian lưu trữ với công nghệ nén H.265 và Smart Coding.
- Tương thích với ngõ ra: 02 ngõ chuẩn HDMI (4K/FHD), 01 ngõ chuẩn BNC.
- Hỗ trợ độ phân giải Full HD1080 và 4K cho ngõ ra hình ảnh.
- Hỗ trợ 2 khe ổ cứng SATA, với dung lượng 12TB cho mỗi ổ.
- Phân quyền với 03 cấp độ người dùng.
- Nguồn điện: 220V - 240V AC; 50Hz/60Hz.
Đặc tính kỹ thuật
Model | WJ-NX200K/G |
Supported Camera | |
Compatible vendor | Panasonic i-PRO series Network cameras, ONVIF NVT conformant camera and encoder |
Supported Image Format | H.265(HEVC), H.264, JPEG |
Supported Image Resolution (Depending on the camera) | - Aspect ratio [4 : 3] 4000x3000, 2560x1920, 2048x1536, 1280x960, 800x600, 640x480 - Aspect ratio [16 : 9] 3840x2160, 2560x1440, 1920x1080, 1280x720, 640x3 - Aspect ratio [1 : 1] 2992x2992, 2816x2816, 2048x2048, 1280x1280 - Aspect ratio [9 : 16] 1080x1920, 720x1280, 360x640 |
Supported Audio Format | G.711 for Onvif, G.726 (ADPCM) 32 kbps, AAC-LC |
Maximum Number of Cameras | MAX. 32* (Default number of cameras: 9) * Three Additional Camera Kit WJ-NXE20W are necessary |
Recording | |
Recording Mode | Event, Schedule, Emergency |
Pre-alarm Recording | Up to 15 seconds *When the delivery speed from the network camera is less than 4 Mbps. |
Sub-stream Recording | 64/ 128/ 256/ 384/ 512/ 768kbps |
Scheduled Recording Mode | 16 programs, 6 time zones/day, Independent setup for each day of the week |
Frame Rate/Camera | Up to 60 fps (Depending on the camera) |
Main Unit Functions | |
Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus, Aux, Wiper (for WV-SUD638) |
Multiscreen Mode | [Main monitor] • Control screen 4/ 9/ 16 split screen display • Wide view screen 2/ 3/ 4/ 5/ 6/ 7/ 9/ 12/ 16/ 24/ 32 split screen display, 1 screen sequence, 4/ 9/ 16 split screen sequence [Sub monitor] 1/ 4/ 9/ 16/ 24/ 32 split screen display, 1 screen sequence, 4/ 9/ 16 split screen sequence |
Playback Control | PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Go to Date, Go to Last (30 s), Time-saving playback |
Search Mode | Search criteria: Time date, Playback by designating a timeline, VMD, Thumbnail |
Copy | File Format: Original Format/MP4 Recorded data of selected cameras and time date range can be copied to USB storage |
Camera Title | Up to 16 Characters |
Clock Display | Time: 12H/24H, Date: 5 formats |
Digital Zoom | Live/Play: 1.25x, 1.5x ,1.75x, 2x, 2.5x, 3x, 3.5x 4x, 5x, 6x, 7x, 8x (only for 1-screen or 4-screen) |
System Log | Operator access (500), Network error (100), Error (1,000), Event (1000), Operation (500) |
System Setup | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simpli ed Chinese, Japanese |
360 Camera Dewarp | Only 1ch display mode |
re-encoding | 2 Client |
SD Memory Data Download | Images recorded in the SD card in the i-PRO series cameras can be transferred to the recorder automatically. (H.265/H.264) |
Browser GUI | |
Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Aux, Wiper (for WV-SUD638) |
Playback Control | REC, PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Go to Date, Go to Last (30s) |
Search Mode | Search criteria: Time date, Event type, VMD, Camera number |
Display Mode | 1/4 screen |
Image Download | File Format: Original Format/MP4 Recorded data of selected camera and time range can be downloaded to a PC. Viewer software can be downloaded separately |
Copy | File Format: Original Format/MP4 Recorded data of selected cameras and time date range can be copied to USB storage |
Camera Title | Up to 16 characters |
Clock Display | On the browser. Time: 12H/24H, Date: 5 formats |
Alarm Control | Reset |
Digital Zoom | Live/Play: 2x, 4x (only for 1-screen) |
System Log | Operator access (500), Network error (100), Error (1,000), Event (1000), Operation (500) |
GUI Language | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simpli ed Chinese, Japanese |
Required PC | CPU: Intel® Core™ i7-860 or faster, RAM: 4 GB or more, VRAM: 128 MB or more (Min. 64 MB), Microsoft® DirectX® 9.0c or later |
Alarm/Event | |
Alarm Source | 9x Terminal inputs, 32x Camera alarms (Panasonic Alarm Protocol), 128x Command alarms |
Event Mode | Off/On |
Alarm Action | Alarm recording, e-mail noti cation, Alarm message, Camera positioning, Terminal output, Panasonic alarm protocol output, Buzzer, Indicator |
Alarm Control | Reset |
Event log | 1000 |
Input/Output | |
Spot Output Connector | 1x 1 V [p-p] / 75 Ω (BNC) NTSC /PAL (selectable in setup menu) |
Monitor (HDMI) Connector | [Main monitor] HDMI 4K UHD(3840x2160p)/ 30Hz, 4K UHD(3840x2160p)/ 25Hz, 1920x1080p/ 60Hz, 1920x1080p/ 50Hz, 1920x1080i/ 60Hz, 1920x1080i/ 50Hz |
[Sub monitor] HDMI 1920x1080p/ 60Hz, 1920x1080p/ 50Hz, 1920x1080i/ 60Hz, 1920x1080i/ 50Hz |
|
Audio Output Connector | -10dBv, 600Ω, unbalanced ×1 (RCA pin jack) |
Alarm/Control Terminal | Alarm Alarm input 1 - 9*, Alarm output**, Alarm reset input*, Face matching output*** *Non-voltage make contact input, +3.3 V pull-up Approx. 23 kΩ **Open collector output, 24 V DC, -200 mA max. ***Additional Business Intelligence Kit WJ-NXF02W is necessary. |
Control Time adjustment input/output*, +5 V output**, Emergency recording input *Non-voltage make contact input, +3.3 V pull-up Approx. 23 kΩ **+5V ±0.5 V 200 mA max. |
|
Error/Warning Network error output*, HDD error/ Recording error output*, Camera error output*, Recorder error output* *Open collector output, 24 V DC, -200 mA max. |
|
Mouse Connection Port | 2 (Front 1, Rear 1) |
Network Port | 2x 10BASE-T/ 100BASE-TX/ 1000BASE-T (RJ45) |
USB Storage | USB 3.0/ USB 2.0 memory, USB 3.0/ USB 2.0 connected HDD (except bus powered device |
Network | |
Network Interface | 2x 10BASE-T/ 100BASE-TX/ 1000BASE-T (RJ45) |
Maximum Recording Rate | 192 Mbps or less |
Maximum Band Width | Total 384 Mbps or less |
Supported Protocol | IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, RTP, RTSP, ICMP, ARP IPv6: ICMPv6 |
Upon Alarm or Warning | |
No. of Simultaneous Users | 16 or less |
User Registration | Up to 32 users |
User Level | 3 Levels (Programmable) |
Partitioning | User level - Camera (View & Control, No Access) |
Security Method | User authentication (ID and Password), Host authentication, Alteration detection, SSL/TLS |
Other Functions | |
Time Synchronization | Terminal (Master/Slave), NTP (Server/Client) |
Summer Time | User definable (using menu setup) |
Remote Monitoring on Smartphone/Tablet | 16 clients or less* *Panasonic Security Viewer v.3.0 or later is required on smartphone/tablet PC |
HDD | |
Type | 8.89 cm (3.5 inch) Serial ATA HDD, Up to 2x HDDs can be installed. |
Maximum Capacity | Up to 12 TB will be supported* *Please check the following URL for the latest information. ( |
RAID | RAID 1 |
Viewer Software | |
Playback Control | Play, Rev Play, Pause, FF, FR, Prev Record, Next Record, Prev Image, Next Image |
Additional Functions | NX Viewer: Alteration detection, Save as JPEG, Two times zoom, Print, Copy, Aspect ratio switching, sh eye correction, corridor display |
Supported OS, Language | Language of the software will be English or Japanese |
General | |
Safety/ EMC Standard | CE (EN60065, EN55032 ClassB, EN55024), EAC |
Power Source | 220V - 240VAC 50 Hz/60 Hz |
Power Consumption | approx. 56 W |
Ambient Operating Temperature | Main body: +5°C to +45°C (41°F to 113°F) Mouse (provided): +5°C to +40°C (41°F to 104°F) |
Ambient Operating Humidity | 5% to 90% (without condensation) |
Maximum Operating Altitude | 2.000 m (6,562 feet) above sea level |
Dimensions | 430 mm (W) x 132 mm (H) x 413 mm (D)(From Rack Mount 420 mm(W) x 88 mm(H) x 300 mm(D) {16-9/16 inches (W) x 3-7/16 inches (H) x 11-13/16 inches (D)} |
Mass (approx.) | When no HDD is installed: 5.2 kg {11.5 lbs} |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
- Mua tại website: Xem và chọn mẫu, click ĐẶT MUA VÀ GIAO HÀNG TẬN NƠI và để lại thông tin như số điện thoại, email, địa chỉ giao hàng, chúng tôi sẽ liên lạc xác nhận đơn hàng với quý khách trong vòng 1-2 giờ để tránh trường hợp bán cho nhiều người cùng một sản phẩm. Theo nguyên tắc người đặt hàng trước sẽ là chủ sở hữu của sản phẩm đó.
- Mua tại cửa hàng công ty: Khách hàng mua trực tiếp từ cửa hàng đặt trước 10% giá trị sản phẩm, chúng tôi sẽ vận chuyển hàng tới địa chỉ đã được cung cấp và thu tiền sau khi hàng đã được kiểm tra và xác nhận.
