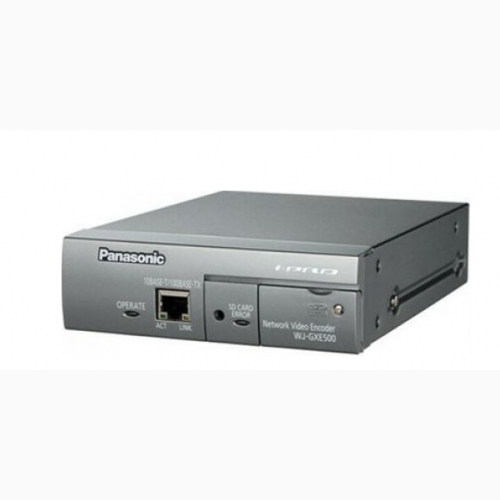

Đầu ghi hình 4 kênh PANASONIC WJ-GXE500E
Đầu ghi hình 4 kênh PANASONIC WJ-GXE500E
- Đầu ghi hình 4 kênh PANASONIC WJ-GXE500E kết nối lên tới 4 camera tương tự.
- Truyền ảnh Full frame H.264 cho mỗi 4 kênh.
Đầu ghi hình 4 kênh PANASONIC WJ-GXE500E
- Đầu ghi hình 4 kênh PANASONIC WJ-GXE500E kết nối lên tới 4 camera tương tự.
- Truyền ảnh Full frame H.264 cho mỗi 4 kênh.
- Tương thích với tín hiệu ngõ ra:Xuất hình ra đồng thời H.264/MPEG-4 và JPEG với kích thước VGA.
- Âm thanh song hướng (1 kênh).
- Kích thước (WxHxD): 140 x 44 x 185 mm.
- Trọng lượng: 1.0kg.
Đặc tính kỹ thuật
Model | WJ-GXE500E |
Audio/Video IF | |
Video Input | - NTSC: 4x 1.0V [p-p]/75Ω NTSC composite video inputs (BNC) Multiplexed control data and cable compensation compatible: 1 ~ 4 CH - PAL: 4x 1.0V [p-p]/75Ω PAL composite video inputs (BNC) Multiplexed control data and cable compensation compatible: 1 ~ 4 CH |
Microphone/Line Input | MIC IN and Line IN are selectable. ø3.5 mm stereo mini jack (monaural input) (Applicable microphone: Plug-in power type) Supply voltage: 2.5V ±0.5V Input impedance: approx. 2kΩ |
Audio Output | ø3.5 mm stereo mini jack (monaural output) Line level |
Browser GUI | |
Camera Control | Pan/ tilt/ zoom/ focus/ preset positions/ auto focus (When using Panasonic P/T/Z cameras) |
Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens (JPEG only). 20 characters camera title available. |
Unit Title | Up to 20 characters |
Camera Title (OSD) | Up to 16 characters On/Off |
Clock Display | Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) |
Alarm Control | Reset |
One Shot Capture | A still picture will be displayed on a newly opened window |
Audio | - Mic (Line) Input: ON/OFF Volume adjustment: Low/Middle/High - Audio Output: ON/OFF Volume adjustment: Low/Middle/High |
SD Memory Data Download | Still or motion images recorded in the SD/SDHC memory card can be downloaded |
GUI/Setup Menu Language | NTSC: English, French (Installation required for French) |
PAL: English, French, Italian, Spanish, German, Russian (Installation required except for English) | |
System Log | Up to 100 (Internal), Up to 4,000 (SD memory when the recording format is set to JPEG.) error logs |
Supported OS | Microsoft® Windows® 8, Microsoft® Windows® 7, Microsoft® Windows Vista®, Microsoft® Windows® XP SP3 |
Supported Browser | Windows® Internet Explorer® 10.0(32 bit), Windows® Internet Explorer® 9.0(32 bit), Windows® Internet Explorer® 8.0(32 bit), Windows® Internet Explorer® 7.0(32 bit), Microsoft® Internet Explorer® 6.0 SP3 |
Network | |
Network IF | 10Base-T/100Base-TX, RJ-45 connector |
Image Resolution | NTSC - VGA mode: VGA (640 x 480)/QVGA (320 x 240) - D1 mode: D1 (720 x 480) |
PAL - VGA mode: VGA (640 x 480)/QVGA (320 x 240) - D1 mode: D1 (720 x 576) |
|
H.264/MPEG-4 | Transmission Mode: Constant bitrate / Framerate priority |
Frame Rate - NTSC: 1/3/5/7.5/10/15/20/30 fps - PAL: 1/3.1/4.2/6.25/8.3/12.5/20/25 fps |
|
Bit Rate/Client: 64/128/256/384/512/768/1.024/ 1.536/2.048/3.072/4.096 kbps/Unlimited | |
Image Quality: Low/Normal/Fine | |
Refresh Interval: 0.2/0.33/0.5/1/2/3/4/5s | |
Transmission Type: UNICAST/MULTICAST | |
JPEG | Image Quality: 10 steps |
Refresh Interval - NTSC: 0.1fps ~ 30fps (JPEG frame rate will be restricted when displaying both JPEG and H.264/MPEG-4 images.) - PAL: 0.08fps ~ 25fps (JPEG frame rate will be restricted when displaying both JPEG and H.264/MPEG-4 images.) |
|
Transmission Type: PULL/PUSH | |
Audio Compression | G.726 (ADPCM), 32 kbps / 16 kbps, CH1 only. |
Audio Mode | OFF/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
Authentification for Audio | Level 1 only/ Level 2 higher/ All users |
Total Bit Rate | 64/ 128/ 256/ 384/ 512/ 768/ 1.024/ 2.048/ 4.096/ 8.192 kbps/ Unlimited |
Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, RTP, FTP, SMTP, DNS, NTP, SNMP IPv4: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP |
FTP Client | Periodic image transfer, Alarm image transfer (When the FTP transmission is failed, backup on an optional SDHC/SD memory card is available.) |
No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
SDHC/SD Memory Card (Option) | Alarm REC/ Backup upon network failure/ Manual REC (JPEG only) Compatible SD (SDHC) card: Panasonic 256 MB, 512 MB, 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB* model * SDHC card |
Alarm | |
Alarm Source | 3 terminal input, VMD, Command alarm, Camera site alarm, Video loss alarm |
Alarm Action | SDHC/SD memory recording, E-mail notification, Alarm terminal output, Indication on browser, FTP image transfer, Panasonic protocol output |
Alarm Log | With SDHC/SD memory card: 5.000 logs, without SDHC/SD memory card: 1.000 logs |
Input/Output | |
Termina | Terminal 1: Alarm input, Terminal 2: Alarm input/Alarm output, Terminal 3: Alarm input/Alarm output/AUX output |
RS-485 Port | 1x RS-485 (RJ-11, 4 wire / 2 wire, Full/Half duplex. Open command conversion table for other manufacturers' PTZ camera) |
General | |
Safety/EMC Standard | NTSC: UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 ClassA) PAL: CE (EN55022, ClassB, EN55024) |
Power Source and Power Consumption | 12 VDC: 500 mA, PoE (IEEE802.3af): 6 W (Class 0 device) |
Ambient Operating Temperature | -10°C ~ +50°C (14°F ~ 122°F) |
Ambient Operating Humidity | 90% or less (without condensation) |
Dimensions | 140 mm (W) x 44 mm (H) x 185 mm (D) (excluding rubber feet and projections) |
Mass (approx.) | 1.0 kg |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
- Mua tại website: Xem và chọn mẫu, click ĐẶT MUA VÀ GIAO HÀNG TẬN NƠI và để lại thông tin như số điện thoại, email, địa chỉ giao hàng, chúng tôi sẽ liên lạc xác nhận đơn hàng với quý khách trong vòng 1-2 giờ để tránh trường hợp bán cho nhiều người cùng một sản phẩm. Theo nguyên tắc người đặt hàng trước sẽ là chủ sở hữu của sản phẩm đó.
- Mua tại cửa hàng công ty: Khách hàng mua trực tiếp từ cửa hàng đặt trước 10% giá trị sản phẩm, chúng tôi sẽ vận chuyển hàng tới địa chỉ đã được cung cấp và thu tiền sau khi hàng đã được kiểm tra và xác nhận.
