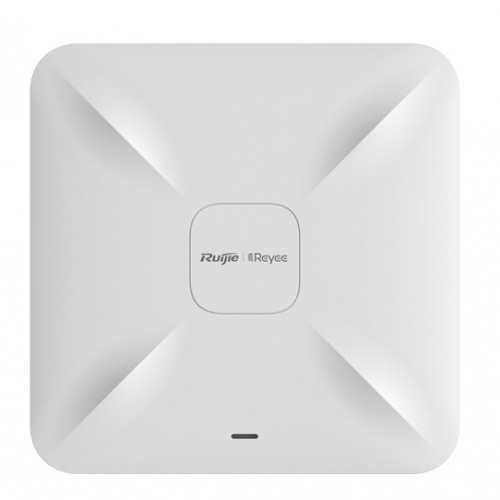

Ceiling Mount Access Point RUIJIE RG-RAP2200(E)
Ceiling Mount Access Point RUIJIE RG-RAP2200(E)
- Dual Band Ceiling Mount Access Point, Qualcomm.
- 867Mbps at 5GHz + 300Mbps at 2.4GHz.
- 2 10/100/1000base-t Ethernet connection port (802.3at/af PoE).
- 4 Internal Antennas.
Ceiling Mount Access Point RUIJIE RG-RAP2200(E)
- Dual Band Ceiling Mount Access Point, Qualcomm.
- 867Mbps at 5GHz + 300Mbps at 2.4GHz.
- 2 10/100/1000base-t Ethernet connection port (802.3at/af PoE).
- 4 Internal Antennas.
- 802.11ac Wave2 technology
- Auto-provisioning via Self-Organizing Network: Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access.
- Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App.
- More LAN Port: Two LAN interfaces are provided to support more services;
- Seamless layer 3 roaming.
- Industrial Design: Robust casing, Provide better strength and safety for products.
Specifications
Model | RG-RAP2200(E) |
Hardware | |
Radio | Dual-stream dual-band |
Protocol | Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n |
Operating Bands | 802.11b/g/n: 2.4G ~ 2.4835GHz 802.11a/n/ac: 5G: 5.150~5.350GHz, 5.725~5.850GHz |
Antenna | Array antennas(2.4G: 2dBi,5G: 2dBi) |
Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
Max Throughput | Up to 400Mbps at 2.4G Up to 867Mbps at 5G 1.267Gbps per AP |
Maximum Transmit Power | 5.725~5.850GHz: ≤20dBm (EIRP) 5.150~5.350GHz: ≤20dBm (EIRP) 2.4~2.4835GHz: ≤20dBm (EIRP) |
Adjustable Power | 1dBm |
Dimensions | 194mm×194mm×35mm (excluding mounting kits) |
Weight | 0.45kg (excluding mounting kits) |
Service Ports | 2 10/100/1000Base-T Ethernet ports, PoE/LAN 1 port supports PoE |
Power Consumption | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3af/802.3at PoE |
Environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C |
MTBF | >400000H |
Software | |
Operating Mode | AP mode and routing mode |
WLAN | Maximum number of clients: 110 |
Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz) | |
Up to 8 SSIDs | |
Support SSID hiding | |
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID | |
SSID-based and radio-based STA limit | |
Support Layer 2 user isolation | |
Roaming | Support Layer 2 and Layer 3 roaming |
Security | Support PSK authentication |
Support static blacklist and whitelist | |
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption | |
Routing | Support static IP address, DHCP, PPPoE Dial Up |
Management and maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
Platform management features | Automatic RF adjustment via the platform |
Unified configuration via the platform | |
Unified monitoring via the platform |
- Bảo hành: 3 năm.
