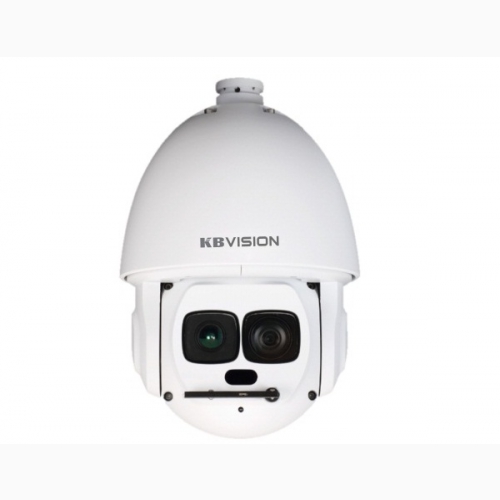

Camera IP Speed Dome hồng ngoại 2.0 Megapixel KBVISION KHA-8023SDIR

Model

KHA-8023SDIR

Image Sensor

1/1.9 inch CMOS

Effective Pixels

2.0MP (1944 (H) x 1092 (V))

Scanning System

Progressive

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

Color: 0.002Lux@F1.5; 0Lux@F1.5 (IR on)

S/N Ratio

More than 56dB

Video Output

BNC(1.0Vp-p/75Ω), PAL / NTSC

Camera Features

Day/Night

Auto (ICR)/ Color/ B/W

Backlight Compensation

BLC/ HLC/ WDR (120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto/ Manual

Noise Reduction

Ultra DNR (2D/3D)

Privacy Masking

Up to 24 areas

Digital Zoom

16x

EIS

Support

Defog

Support

Lens

Focal Length

6mm~180mm (30x Optical zoom)

Max Aperture

F1.5~ F4.3

Focus Control

Auto / Manual

Angle of View

H: 61.2° ~ 2.1°

Close Focus

Distance 100mm ~ 1000mm

IR Light

Laser Light Control

Auto / Manual

Laser Distance

Up to 500m

Angle of Laser Light

2° ~ 60°

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°, auto flip 180°

Manual Control Speed

Pan: 0.1° ~200°/s; Tilt: 0.1° ~120°/s

Preset

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan, Auto Scan

Speed Setup

Human-oriented focal length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Time Task

Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Video

Compression

H.264/MJPEG

Resolution

1080P (1920  x 1080)/ 720P (1280 x 720) /D1 (704  x 576/ 704 x 480)/ CIF (352 x 288/ 352 x 240)

Frame Rate

Main Stream

1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)

Sub Stream 1

D1/CIF(1 ~ 25/30fps)

Sub Stream 2

720P/D1/ CIF (1 ~ 25/30fps)

Bit Rate

H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps

Audio

Compression

G.711a, G.711u/ PCM (32kbps)/ PCM (128kbps)

Interface

1/1 channel In/ Out

Intelligent Function

Auto Tracking

Single-scene, multiple-scene, panorama-scene

Tracking Trigger Mode

Manual / Auto (alarm triggered)

Tracking Trigger Event

Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.

Network

Ethernet

RJ-45 (10/100Base -T)

Protocol

IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,

RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,

Bonjour, 802.1x

Compatibility

ONVIF, PSIA, CGI

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone…

Auxiliary Interface

Memory Slot

Micro SD 128GB

Alarm

7/2 channel In/ Out

General

Power Supply

24VAC /3A (±25%), Hi-POE

Power Consumption

20W, 43W (IR on, Heater on)

Ingress Protection

IP67

Dimensions

Φ240 x 357 mm

Weight

6.75kg
