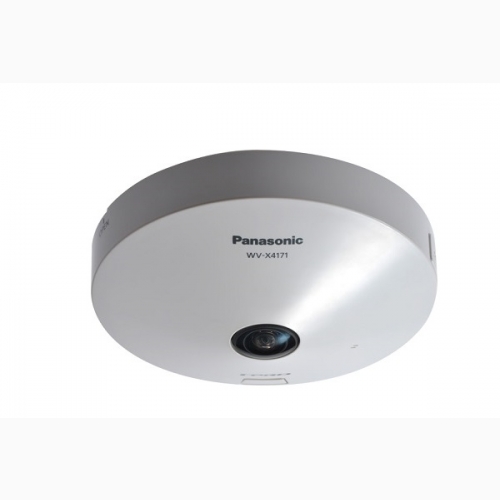

Camera IP PANASONIC WV-X4171
Camera IP PANASONIC WV-X4171
- Cảm biến hình ảnh: Approx. 1/2 type MOS image sensor.
- Độ phân giải camera ip: 9.0 Megapixel.
- Tốc độ khung hình: Lên đến 30 fps.
Camera IP PANASONIC WV-X4171
- Cảm biến hình ảnh: Approx. 1/2 type MOS image sensor.
- Độ phân giải camera ip: 9.0 Megapixel.
- Tốc độ khung hình: Lên đến 30 fps.
- Ống kính: 1.4mm.
- Độ nhạy sáng tối thiểu: Color: 0.3lx, BW: 0.2lx.
- Chuẩn nén hình ảnh: H.265/ H.264/ JPEG.
- Nguồn điện:
+ DC power supply: DC12V/ 560mA/ Approx. 6.7W;
+ PoE (IEEE802.3af compliant) Device: DC48V/ 150mA/ Approx. 7.2W (Class 0 device).
Đặc tính kỹ thuật
Model | WV-X4171 |
Camera | |
Image Sensor | Approx. 1/2 type MOS image sensor |
Minimum Illumination | - Color: 0.3 lx, BW: 0.2 lx (F1.9, Maximum shutter: Off (1/30 s), AGC: 11) - Color: 0.02 lx, BW: 0.01 lx (F1.9, Maximum shutter: max. 16/30s, AGC: 11) |
Intelligent Auto | On/ Off |
Maximum shutter | Max.16/30s to Max. 1/10000s |
Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
Dynamic Range | 108 dB (Super Dynamic: On, level: 31) |
Image Settings | Gain (AGC), White balance |
Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
Day/ Night (Electrical) | Off/ Auto |
Video Motion Detection (VMD) | On/ Off, 4 areas available |
Intelligent VMD (i-VMD) | Type 5 *Bundled License |
Privacy Zone | On/ Off (up to 8 zones available) |
Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
Fixing angle adjustment | -5°, 0°, +5° |
Lens | |
Zoom Ratio | 1x |
Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
Focal length | 1.4 mm {1/16 inches} |
Maximum Aperture Ratio | 1 : 1.9 |
Focus range | 0.5 m {19-11/16 inches} - ∞ |
Angular Field of view | Horizontal: 183° Vertical: 183° |
Browser GUI | |
Camera Control | Brightness, AUX On/ Off |
Audio | - Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High - Audio Output: On/ Off Volume adjustment: Low/ Middle/ High |
GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Network | |
Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
Resolution |
- Fisheye mode (max.30 fps) 2992×2992/ 2192×2192/ 1280×1280/ 640×640/ 320×320 - Quad PTZ mode (max.15 fps), Single PTZ mode (max.15 fps) 2560×1920/ 2048×1536/ 1600×1200/ 1280×960/ 800×600/ VGA/ QVGA |
- Double Panorama mode (max. 15 fps) 2560×1440/ 1920×1080/ 1280×720/ 640×360/ 320×180 - Fisheye + Double Panorama mode (max. 15 fps) (Fisheye) 2992×2992/ 2192×2192/ 1280×1280/ 640×640/ 320×320 (Double Panorama) 1280×720 / 640×360 / 320×180 - Fisheye + Quad PTZ mode (max. 15 fps) (Fisheye) 2992×2992/ 2192×2192/ 1280×1280/ 640×640/ 320×320 (Quad PTZ) 1280×960/ 800×600/ VGA/ QVGA •Quad streams mode (Single PTZ (Quad streams)) 1280×960 / 800×600 / VGA / QVGA (max. 15 fps) (Quad PTZ) 2560×1920 / 2048×1536 / 1600×1200 / 1280×960 / 800×600 / VGA / QVGA (max. 5 fps) |
|
- Panorama mode (max. 15 fps) 2560×1440/ 1920×1080/ 1280×720/ 640×360/ 320×180 - Fisheye + Panorama mode (max. 15 fps) (Fisheye) 2992×2992/ 2192×2192/ 1280×1280/ 640×640/ 320×320 (Panorama) 1280×720/ 640×360/ 320×180 |
|
H.265/ H.264 | - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort - Transmission Type: Unicast/ Multicast |
JPEG | - Image Quality: 10 steps |
Smart Coding | - GOP (Group of pictures) control : On (Frame rate control)*/ On (Advanced)*/ On (Mid)/ On (Low)/ Off *On (Frame rate control) and On (Advanced) are only available with H.265. - Auto VIQS: On / Off |
Audio Compression | G.726 (ADPCM): 16 kbps/ 32 kbps, G.711: 64 kbps, AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
SDXC/SDHC/SD Memory Card (Option) | - H.265/ H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure - JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure - Compatible SDXC/SDHC/SD card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
Mobile Terminal Compatibility | iPad, iPhone, Android mobile terminals |
Alarm | |
Alarm Source | 3 terminals input, VMD, Command alarm |
Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output |
Input/ Output | |
Monitor output (for adjustment) | - VBS: 1.0 V [p-p]/ 75 Ω, composite, ø3.5 mm mini jack An NTSC or PAL signal can be outputted from camera |
Audio Input | - For microphone: ø3.5 mm stereo mini jack, Recommended applicable microphone: Plug-in power type (Sensitivity of microphone: –48 dB ±3 dB (0 dB=1 V/ Pa,1 kHz)) Input impedance: Approx. 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V - For line: Input level: Approx. –10 dBV |
Built-in microphone | Nondirectional electret condenser microphone |
Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV |
External I/O Terminals | ALARM IN1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN3 (Alarm input 3/ AUX OUT) (x1) |
General | |
Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
Power Source and Power Consumption | - DC power supply: DC 12V/ 560 mA/Approx. 6.7 W - PoE (IEEE802.3af compliant) Device: DC 48V/ 150mA/Approx. 7.2W (Class 0 device) |
Ambient Operating Temperature | -10°C to +50°C (14°F to 122°F) |
Ambient Operating Humidity | 10% to 90 % (no condensation) |
Dimensions | ø150 mm × 49.5 mm (H) {ø5-29/32 inches × 1-15/16 inches (H)} |
Mass (approx.) | Approx. 420 g {0.93 lbs} |
Finish | Main body : ABS resin, Sail white |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
- Mua tại website: Xem và chọn mẫu, click ĐẶT MUA VÀ GIAO HÀNG TẬN NƠI và để lại thông tin như số điện thoại, email, địa chỉ giao hàng, chúng tôi sẽ liên lạc xác nhận đơn hàng với quý khách trong vòng 1-2 giờ để tránh trường hợp bán cho nhiều người cùng một sản phẩm. Theo nguyên tắc người đặt hàng trước sẽ là chủ sở hữu của sản phẩm đó.
- Mua tại cửa hàng công ty: Khách hàng mua trực tiếp từ cửa hàng đặt trước 10% giá trị sản phẩm, chúng tôi sẽ vận chuyển hàng tới địa chỉ đã được cung cấp và thu tiền sau khi hàng đã được kiểm tra và xác nhận.
