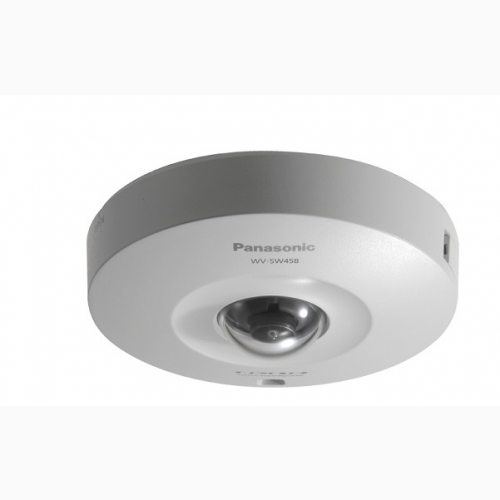

Camera IP PANASONIC WV-SW458MA
Camera IP PANASONIC WV-SW458MA
- Cảm biến hình ảnh: 1/3 type MOS image sensor.
- Độ phân giải camera ip: Approx. 3.1 Megapixels.
- Tốc độ khung hình: Lên đến 30 fps.
Camera IP PANASONIC WV-SW458MA
- Cảm biến hình ảnh: 1/3 type MOS image sensor.
- Độ phân giải camera ip: Approx. 3.1 Megapixels.
- Tốc độ khung hình: Lên đến 30 fps.
- Ống kính: 0.837 mm.
- Độ nhạy sáng tối thiểu: Color: 1.5lx, BW: 1.2lx.
- Chuẩn nén hình ảnh: H.264/ JPEG.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuấn chống va đập: IK10.
- Nguồn điện: DC12V, PoE.
Đặc tính kỹ thuật
Model | WV-SW458MA |
Camera | |
Image Sensor | 1/3 type MOS image sensor |
Effective Pixels | Approx. 3.1 mega pixels |
Scanning Mode | Progressive |
Scanning Area | 4.51 mm (H) × 3.38 mm (V) {3/16 inches (H) x 1/8 inches (V)} |
Minimum Illumination | Color: 1.5 lx (F2.4, Auto slow shutter: Off (1/30s), Gain: On (High)) Color: 0.1 lx (F2.4, Auto slow shutter: Max. 16/30s, Gain: On(High)) BW: 1.2 lx (F2.4, Auto slow shutter: Off (1/30s), Gain: On (High)) BW: 0.08 lx (F2.4, Auto slow shutter: Off (16/30s), Gain: On (High)) |
White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
Light Control Mode | Indoor scene (50 Hz/ 60 Hz)/ ELC |
Shutter Speed | With Super Dynamic On ELC (1/30 s) With Super Dynamic Off ELC (1/30 s), ELC (3/100 s), ELC (3/120 s), ELC (2/100 s), ELC (2/120 s), ELC (1/100 s), ELC (1/120 s), ELC (1/250 s), ELC (1/500 s), ELC (1/1,000 s), ELC (1/2,000 s), ELC (1/4,000 s), ELC (1/10,000 s) |
Super Dynamic | On/ Off |
Dynamic Range | 52dB typ. (only when Super Dynamic : On) |
Adaptive Black Stretch | On/ Off (only when Super Dynamic: Off) |
AGC | On (High)/ On (Mid)/ On (Low)/ Off |
Electronic Sensitivity UP | Off (1/30 s), Max. 2/30 s, Max. 4/30 s, Max. 6/30 s, Max. 10/30 s, Max. 16/30 s |
Day & Night (Electrical) | Off / Auto |
Digital Noise Reduction | High/ Low |
Video Motion Detection | On/ Off, 4 areas available |
Auto mode | Auto pan/ Preset sequence Auto mode can only be used when the image type is Quad PTZ or Single PTZ. |
Self return | 10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min Self return can only be used when the image type is Quad PTZ or Single PTZ. |
Privacy Zone | On/ Off (up to 4 zones available) |
VIQS | On/ Off (up to 2 areas available) However, the VIQS function is not supported when 'Quad PTZ', Single PTZ' or 'Quad streams' are selected |
Camera Title (OSD) | Up to 20 characters (alphanumeric characters, marks), On/Off However, you can specify characters to be displayed on each of the four screens when 'Quad streams' is selected. |
Lens | |
Focal Length | 0.837 mm |
Angular Field of View | Horizontal: 182°, Vertical: 176° |
Maximum Aperture Ratio | 1 : 2.4 (Fixed) |
Focusing Range | 0.3 m - ∞ |
Browser GUI | |
Camera Control | Pan/Tilt/Digital Zoom, Preset, Auto Mode, Self Return, Fisheye Control, Brightness, AUX On / Off |
Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available |
Digital Zoom | 1x, 2x, 4x controlled by browser GUI (Panorama, Double Panorama, Fisheye mode) 1x - 4x (Quad PTZ or Single PTZ mode |
Camera Title | Up to 20 alphanumeric characters |
Clock Display | Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) |
Alarm Control | Reset |
One Shot Capture | A still picture will be displayed on a newly opened window. |
Audio | - Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High - Audio Output: On/ Off Volume adjustment: Low/ Middle/ High |
SD Memory Data Download | Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded |
GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
System Log | Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs |
Supported OS | Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7, Microsoft® Windows Vista®, Microsoft® Windows® XP SP3 |
Supported Browser | Windows® Internet Explorer®11 (32 bit), Windows® Internet Explorer®10 (32 bit), Windows® Internet Explorer® 9 (32 bit), Windows® Internet Explorer® 8 (32 bit), Windows® Internet Explorer® 7 (32 bit), Microsoft® Internet Explorer® 6 SP3 |
Network | |
Network IF | 10Base-T / 100Base-TX, M12 connector (female) |
Audio Compression | G.726 (ADPCM) 32 kbps/ 16 kbps, G.711 64 kbps |
Audio Mode | Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
Authentication for Audio | Level 1 only/ Level 2 higher/ All users |
Total Bit Rate | 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps/ Unlimited |
Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SD memory card is available.) |
No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
SDXC/SDHC/SD Memory Card (Option) | H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC JPEG recording: Manual REC/ Alarm REC (Post)/ Backup upon network failure Compatible SD (SDHC/SDXC) card: Panasonic 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
Cellular Phone Compatibility | JPEG image, AUX control (by access level) |
Mobile Terminal Compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later) Android mobile terminals |
Alarm | |
Alarm Source | 3 terminals input, VMD, Command alarm |
Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notication, Indication on browser, FTP image transfer, Panasonic protocol output, HTTP notification |
Alarm Log | With SDXC/SDHC/SD memory card: 5,000 logs, without SDXC/SDHC/SD memory card: 1,000 logs |
Schedule | Alarm/ VMD/ Access permission/ H.264 recording |
Input/Output | |
Microphone/Line Input | ø3.5 mm monaural mini jack, Input impedance: Approx. 2 kΩ - For microphone input: Applicable microphone: Plug-in power type, Supply voltage: 2.5 V ±0.5 V - For line input: Input level: Approx. –10 dBV |
Audio Output | ø3.5 mm stereo mini jack (monaural output), Output impedance: Approx. 600 Ω, Line leve |
External I/O Terminals | ALARM IN 1, ALARM IN 2(ALARM OUT), ALARM IN 3(AUX OUT) (x1 for each) |
General | |
Mounting method | Ceiling/ Wall |
Power Source and Power Consumption | DC12V, PoE (IEEE802.3af compliant)/ DC*12 V: 540 mA/ 6.5 W/ PoE 48 V: 125 mA / 6.0 W (Class 2 devices) *FOR UL LISTED MODEL(S), ONLY CONNECT DC12V CLASS 2 POWER SUPPLY. |
Ambient Operating Temperature | -40 °C to +50 °C (-40 °F to 122 °F) |
Ambient Operating Humidity | Less than 90 % (no condensation) |
Water and Dust Resistance | IP66, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X complian |
Shock Resistance | Compliant with 50J (IEC 60068-2-75)/IK10 (IEC 62262) |
Railway Application | EN50155-T3, EN50121, ECE-R10, EN45545, EN50498 |
Dimensions | ø154 mm x 50.5 mm (H) {ø6-1/16 inches x 2 inches (H)} |
Mass (approx.) | Approx. 0.8 kg {1.76 lbs} (including the camera attachment) |
Finish | Main body: Aluminum die cast, light gray Dome section: Clear polycarbonate resin |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
- Mua tại website: Xem và chọn mẫu, click ĐẶT MUA VÀ GIAO HÀNG TẬN NƠI và để lại thông tin như số điện thoại, email, địa chỉ giao hàng, chúng tôi sẽ liên lạc xác nhận đơn hàng với quý khách trong vòng 1-2 giờ để tránh trường hợp bán cho nhiều người cùng một sản phẩm. Theo nguyên tắc người đặt hàng trước sẽ là chủ sở hữu của sản phẩm đó.
- Mua tại cửa hàng công ty: Khách hàng mua trực tiếp từ cửa hàng đặt trước 10% giá trị sản phẩm, chúng tôi sẽ vận chuyển hàng tới địa chỉ đã được cung cấp và thu tiền sau khi hàng đã được kiểm tra và xác nhận.
