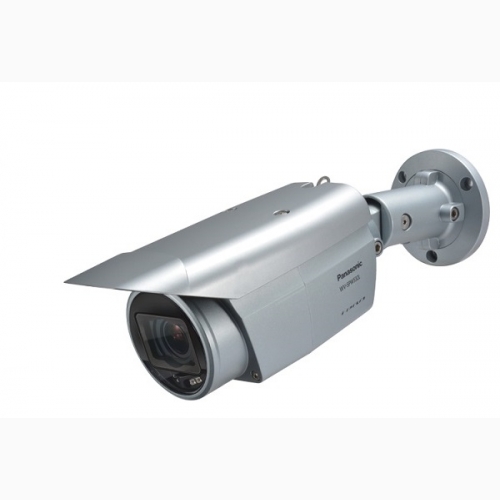

Camera IP PANASONIC WV-SPW532L
Camera IP PANASONIC WV-SPW532L
- Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
- Độ phân giải camera ip: 2.0 Megapixel.
- Tốc độ khung hình: 30 fps.
Camera IP PANASONIC WV-SPW532L
- Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
- Độ phân giải camera ip: 2.0 Megapixel.
- Tốc độ khung hình: 30 fps.
- Độ nhạy sáng tối thiểu: Color: 0.07 lx, BW: 0.01 lx; B/W: 0.0 lux (with IR LED on).
- Chuẩn nén hình ảnh: H.264/ JPEG.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: PoE (IEEE802.3af compliant): DC48V/ 190mA/ Approx. 9.12 W (Class 0 device).
Đặc tính kỹ thuật
Model | WV-SPW532L |
Camera | |
Image Sensor | Approx. 1/3 type MOS image sensor |
Scanning Mode | Progressive scan |
Scanning Area | 5.35 mm (H) x 3.34 mm(V) {7/32 inches (H) x 1/8 inches (V)} |
Minimum Illumination | - Color: 0.07 lx, BW: 0.01 lx (F1.6, Maximum shutter: Max. 1/30s, Gain: On(High)) - BW: 0 lx (F1.6, Maximum shutter: Off(1/30 s), Gain: High, when the IR LED is lit) - Color: 0.005 lx, BW: 0.0007 lx (F1.6, Maximum shutter: Max. 16/30s, Gain: On(High)) |
IR LED Light | Off/ Auto (High/ Mid/ Low) |
IR LED irradiation distance | Approx. 30 m {98.43 feet} |
White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
Light Control Mode | Outdoor scene/ Indoor scene (50 Hz)/ Indoor scene (60 Hz)/ Fix shutter |
Shutter Speed | OFF(1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
Wide Dynamic Range | On/ Off |
Face wide dynamic range | On/ Off (only when Wide Dynamic Range: On) |
Adaptive Black Stretch | On/ Off (only when Wide Dynamic Range: Off) |
Fog compensation | On/ Off (only when Wide Dynamic Range/ Adaptive black stretch: Off) |
High light compensation(HLC) | On/ Off (only when Wide Dynamic Range/ Adaptive black stretch: Off) |
AGC | On (Low)/ On (Mid), On (High)/ Off |
Maximum shutter | max. 1/1000s, max. 1/500s, max. 1/250s, max. 1/100s, max. 1/60s, max. 2/100s, max. 2/120s, max. 1/30s, max. 2/30s, max. 4/30s, max. 6/30s, max. 10/30s, max. 16/30s |
Day/Night (ICR) | Off / On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC) |
Digital Noise Reduction | High/ Low |
Video Motion Detection | 4 areas, Sensitivity: 15 steps, Detection size: 10 steps |
Privacy Zone | Up to 8 zones |
VIQS | Up to 8 zones |
Camera Title (OSD) | Up to 20 characters (alphanumeric characters, marks) |
Focus Adjustment | ABF/ MANUAL (Html only) |
Lens Distortion Compensation | 256 steps |
Lens | |
Vari Focal Length | 2.8 mm – 10 mm {1/8 inches – 13/32 inches} |
Angular Field of View | - [16 : 9 mode] Horizontal : 31 ° (TELE) - 112 ° (WIDE) Vertical : 17 ° (TELE) - 60 ° (WIDE) - [4 : 3 mode] Horizontal : 26 ° (TELE) - 91 ° (WIDE) Vertical : 19 ° (TELE) - 67 ° (WIDE) |
Maximum Aperture Ratio | 1 : 1.6 (WIDE) - 1 : 3.4 (TELE) |
Focusing Range | 0.3 m - ∞ |
Adjusting Angle (Camera mount bracket) | |
Ceiling mounting | - Horizontal: ±180° (PAN rotation part) - Vertical: 0° to 90° (TILT rotation part) - Yaw: -190° to +100° (YAW rotation part) |
Wall mounting | - Horizontal: ±90° (TILT rotation part)* - Vertical: ±90° (TILT rotation part)* - Yaw: -190° to +100° (YAW rotation part) |
Browser GUI | |
Cropping | Off/ JPEG(1)/ JPEG(2)/ JPEG(3)/ H.264(1)/ H.264(2)/ H.264(3)/ H.264(4)/ H.264(all) Alarm action On/ Off |
Camera Control | Brightness, AUX On/ Off |
Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available |
Digital Zoom | 1x, 2x, 4x controlled by browser GUI |
Camera Title | Up to 20 alphanumeric characters |
Clock Display | Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) |
Alarm Control | Reset |
One Shot Capture | A still picture will be displayed on a newly opened window. |
SD Memory Data Download | Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded. |
GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
System Log | Up to 100 (Internal) Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs |
Supported OS | Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7,Microsoft® Windows Vista® |
Supported Browser | Windows® Internet Explorer® 11 (32 bit), Windows® Internet Explorer® 10 (32 bit), Windows® Internet Explorer® 9 (32 bit), Windows® Internet Explorer® 8 (32 bit), Windows® Internet Explorer® 7 (32 bit), Safari, Google Chrome, Mozilla Firefox |
Network | |
Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
Image Resolution | - 2 Megapixel [16 : 9](30 fps mode) H.264(1), H.264(2) 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180/ 160 x 90 H.264(3), H.264(4) 1,280 x 720/ 640 x 360/ 320 x 180/ 160 x 90 - 2 Megapixel [4 : 3](30 fps mode) H.264(1), H.264(2) 1,600 x 1,200/ 1,280 x 960/ 800 x 600/ VGA/ 400 x 300 QVGA/ 160 x 120 H.264(3), H.264(4) 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 - 3 Megapixel [4 : 3](30 fps mode) * Used by super resolution technology H.264(1), H.264(2) 2,048 x 1,536/ 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 H.264(3), H.264(4) 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 |
H.264 | - Transmission Mode: Constant bit rate/ Variable bit rate/ Framerate priority/ Best effort/ Advanced VBR - Frame Rate: 1/ 3/ 5/ 7.5/ 10/ 12/ 15/ 20/ 30 fps - Image Quality (Constant bit rate/Best effort): Low (Motion priority)/ Normal/ Fine(Image quality priority) - Smart Coding mode: On (Low/ Mid/ High)/ Off (Only when 'Variable bit rate' is selected) - Refresh interva: 0.2/ 0.25/ 0.33/ 0.5/ 1/ 2/ 3/ 4/ 5s |
Transmission Type | Unicast/ Multicast |
JPEG | - Image Quality: 10 steps - Refresh interval: 0.1 fps - 30 fps (JPEG frame rate will be restricted when displaying both JPEG and H.264 images.) - Transmission Type: Pull/ Push |
Total Bit Rate | 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps/ Unlimited |
Supported Protocol | - IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP - IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available.) |
No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
SDXC/SDHC/SD Memory Card (Option | - H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure Compatible (JPEG only) - JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure Compatible SD (SDHC/SDXC) card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
Cellular Phone Compatibility | JPEG image, AUX control (by access level) |
Mobile Terminal Compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later), Android mobile terminal |
Alarm | |
Alarm Source | VMD, Command alarm |
Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notication Indication on browser, FTP image transfer, Panasonic protocol output |
Alarm Log | With SDXC/SDHC/SD memory card: Up to 50,000 logs for each SD memory card |
Schedule | Alarm/ VMD/ Access permission/ H.264 recording/ Scene file |
Input/Output | |
Monitor Output (for adjustment) | - VBS: 1.0 V [p-p]/75 Ω, composite, RCA jack An NTSC or PAL signal can be outputted from camera (either press the INITIAL SET switch quickly (within 1 second) or use software to select either NTSC or PAL signal). |
General | |
Safety | UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 |
EMS | FCC (Part15 ClassA), ICES003 ClassA, EN55022 ClassB, EN55024 |
Power Source and Power Consumption | When IR LED is On PoE (IEEE802.3af compliant): DC 48V/ 190mA/ Approx. 9.12W (Class 0 device) |
Ambient Operating Temperature | -30 °C to +50 °C (–22 °F to 122 °F) |
Ambient Operating Humidity | 10 to 90 % (no condensation) |
Water and Dust Resistance | IP66, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant |
Dimensions * Installing using the base bracke |
95 mm (W) x 99 mm (H) x 326 mm (L) {3-3/4 inches (W) x 3-57/64 inches (H) x 1ft 27/32 inches (L)} |
Mass (approx.) | Approx. 1.4 kg {3.1 lbs} |
Finish | Main body: Aluminum die cast, light gray Front cover section clear part: Clear polycarbonate resin |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
- Mua tại website: Xem và chọn mẫu, click ĐẶT MUA VÀ GIAO HÀNG TẬN NƠI và để lại thông tin như số điện thoại, email, địa chỉ giao hàng, chúng tôi sẽ liên lạc xác nhận đơn hàng với quý khách trong vòng 1-2 giờ để tránh trường hợp bán cho nhiều người cùng một sản phẩm. Theo nguyên tắc người đặt hàng trước sẽ là chủ sở hữu của sản phẩm đó.
- Mua tại cửa hàng công ty: Khách hàng mua trực tiếp từ cửa hàng đặt trước 10% giá trị sản phẩm, chúng tôi sẽ vận chuyển hàng tới địa chỉ đã được cung cấp và thu tiền sau khi hàng đã được kiểm tra và xác nhận.
