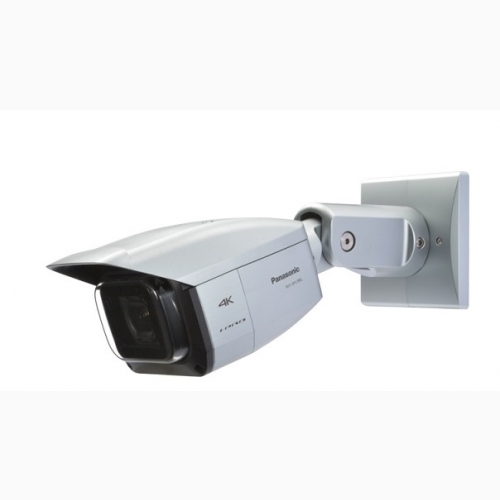

Camera IP PANASONIC WV-SPV781L

Giá:

93,360,000 đ

Camera IP PANASONIC WV-SPV781L

- Cảm biến hình ảnh: 1/1.7 type MOS image sensor.

- Độ phân giải camera ip: 8.0 Megapixel.

- Tốc độ khung hình: Lên đến 30 fps.

- Ống kính: 4.2 mm - 25.2 mm.

Số lượng

Camera IP PANASONIC WV-SPV781L

- Cảm biến hình ảnh: 1/1.7 type MOS image sensor.

- Độ phân giải camera ip: 8.0 Megapixel.

- Tốc độ khung hình: Lên đến 30 fps.

- Ống kính: 4.2 mm - 25.2 mm.

- Độ nhạy sáng tối thiểu: Color: 0.3 lx, BW: 0.04 lx; B/W: 0.0 lux (with IR LED on).

- Tầm quan sát hồng ngoại: 30 mét.

- Chuẩn nén hình ảnh: H.264/JPEG.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Nhiệt độ hoạt động: -45°C to 50°C.

- Nguồn điện:

+ DC12V: 1050mA/ Approx. 12.6W.

+ PoE (IEEE802.3af compliant)/PoE DC48V: 265mA/Approx. 12.95W (Class 0 device).

Đặc tính kỹ thuật

Model	WV-SPV781L
Camera
Image Sensor	1/1.7 type MOS image sensor
Scanning Mode	Progressive scan
Scanning Area	7.40 mm (H) x 5.55 mm (V) {9/32 inches (H) x 7/32 inches (V)}
Minimum Illumination	Color: 0.3 lx, BW: 0.04 lx, BW (with IR LED): 0 lx (F1.6, Maximum shutter: Off (1/30s), Gain: High), Color: 0.02 lx, BW 0.003 lx (F1.6, Maximum shutter: Max. 16/30s, AGC: High)
IR LED Light	Off/ Auto (High/ Mid/ Low)
IR LED irradiation distance	Approx. 30 m {98.43 feet} at IR LED: Auto (High)
White Balance	ATW1 (2,700 - 6,000 K) /ATW2 (2,000 - 6,000 K) /AWC (2,000 - 10,000 K)
Light Control Mode	Outdoor scene/ Indoor scene (50 Hz)/ Indoor scene (60 Hz)/ Fix shutter
Maximum shutter	max. 1/1000s, max. 1/500s, max. 1/250s, max. 1/120s, max. 1/100s, max. 2/120s, max. 2/100s, max. 1/30s, max. 2/30s, max. 4/30s, max. 6/30s, max. 10/30s, max. 16/30s
Shutter Speed	Off(1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
Wide Dynamic Range	On/ Off
Adaptive Black Stretch	On/ Off (only when Wide dynamic range)
Fog compensation	On/ Off (only when Wide dynamic range/ Adaptive black stretch: Off)
High light compensation (HLC)	On/ Off (only when Wide Dynamic Range/ Back light compensation (BLC): Off)
Gain (AGC)	On (High)/ On (Mid)/ On (Low)/ Off
Day/Night (ICR)	Off / On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC)
Digital Noise Reduction	High/ Low
Video Motion Detection (VMD)	On/ Off, 4 areas available
Privacy Zone	On/ Off (up to 8 zones available)
VIQS	On/ Off (Max. 8 locations)
Camera Title (OSD)	On/ Off Up to 20 characters (alphanumeric characters, marks)
Focus Adjustment	ABF/ MANUAL (Html only)
Lens
Vari Focal Length	4.2 mm - 25.2 mm {5/32 inches – 1 inch}
Angular Field of View	- [16 : 9 mode] Horizontal : 17 ° (TELE) - 97 ° (WIDE) Vertical : 9.4 ° (TELE) - 55 ° (WIDE) '- [4 : 3 mode] Horizontal : 18 ° (TELE) - 101 ° (WIDE) Vertical : 13 ° (TELE) - 76 ° (WIDE)
Maximum Aperture Ratio	1 : 1.6 (WIDE) - 1 : 3.3 (TELE)
Focusing Range	1.0 m - ∞
Browser GUI
Cropping	H.264(1) Ch1 - Ch4 Up to 4 image capture areas can be specified. *only when Image capture mode : Cropping [16:9] (30fps mode)
Camera Control	Brightness, AUX On/ Off
Display Mode	Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available.
Digital Zoom	1x, 2x, 4x controlled by browser GUI
Camera Title	Up to 20 alphanumeric characters
Clock Display	Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
Alarm Control	Reset
One Shot Capture	A still picture will be displayed on a newly opened window.
Audio	Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High Audio Output: On/ Off Volume adjustment: Low/ Middle/ High
SD Memory Data Download	Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded.
GUI/Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
System Log	Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory) error logs
Supported OS	Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7, Microsoft® Windows Vista®
Supported Browser	Windows® Internet Explorer® 11 (32 bit), Windows® Internet Explorer® 10 (32 bit), Windows® Internet Explorer® 9 (32 bit), Windows® Internet Explorer® 8 (32 bit), Windows® Internet Explorer® 7 (32 bit)
Network
Network IF	10Base-T/ 100Base-TX, RJ45 connector
Image Resolution	- 8 Mega pixel [16 : 9] (30 fps mode)* + H.264(1): 3,840 x 2,160, up to 30 fps + JPEG(2): 640 x 360 * 'H.264(2)' and 'JPEG(1)' can not be selected.
	- 8 Megapixel [16 : 9] (15 fps mode) + H.264(1): 3,840 x 2,160, up to 15 fps + H.264(2): 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps JPEG(1): Enables the setting of the resolution in the same way as for H.264 (1), H.264 (2), or JPEG (2). JPEG(2): 640 x 360
	- 12 Megapixel [4 : 3] (15 fps mode) + H.264(1): 4,000 x 3,000, up to 15 fps + H.264(2): 640 x 480 / 320 x 240, up to 5 fps + JPEG(1): Enables the setting of the resolution in the same way as for H.264 (1), H.264 (2), or JPEG (2). + JPEG(2): 640 x 480
	- 5 Megapixel [4 : 3] (30 fps mode) + H.264(1): 2,560 x 1,920/ 2,048 x 1,536/ 1,600 x 1,200/ 1,280 x 960/ 800 x 600, up to 30 fps + H.264(2): 1,280 x 960/ 800 x 600/ 640 x 480/ 320 x 240, up to 30 fps + JPEG(1): Enables the setting of the resolution in the same way as for H.264 (1), H.264 (2), or JPEG (2). + JPEG(2): 640 x 480
	- 4 Megapixel [16 : 9] (30 fps mode)* + H.264(1): 2,560 x 1,440/ 1,920 x 1,080/ 1,280 x 720, up to 30 fps + H.264(2): 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps + H.264(3): 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps + H.264(4): 640 x 360, up to 30 fps + JPEG(2): 640 x 360 * 'JPEG(1)' can not be selected.
	- Cropping [16 : 9] (30 fps mode) H.264(1): Ch1 1,280 x 720/ 640 x 360, up to 30 fps Cropping H.264(1): Ch2 1,280 x 720/ 640 x 360, up to 30 fps Cropping H.264(1): Ch3 1,280 x 720/ 640 x 360, up to 30 fps Cropping H.264(1): Ch4 1,280 x 720/ 640 x 360, up to 30 fps Cropping H.264(2): 1,920 x 1,080/ 1,280 x 720/ 640 x 360/320 x 180, up to 30 fps JPEG(1): Enables the setting of the resolution in the same way as for H.264 (2) or JPEG (2). JPEG(2): 640 x 360
H.264	- Transmission priority: Constant bit rate/ Variable bit rate/ Frame rate/ Best effort/ Advanced VBR - Frame Rate + 1/3/5/7.5/10/12/15/ 20/30fps The frame rate is limited to 'bit rate'. When a value with an asterisk () is selected, the actual frame rate may be lower than the value selected. - Bit Rate/Client: 64/128/256/384/512/768/1,024/1,536/2,048/3,072/ 4,096/6,144/ 8,192/10,240/ 12,288/14,336/ 16,384/20,480 /24,576/30,720/40,960 kbps The available range of the H.264 bit rate varies depending on the setting selected for “image capture size” - Image Quality: Low / Normal / Fine 0 Super Fine / 1 Fine / 2 / 3 / 4 / 5 Normal / 6 / 7 / 8 / 9 Low - Smart Coding mode: On (Low / Mid / High) / Off (Only when 'Variable bit rate' is selected) - Refresh Interval: 0.2/ 0.25/ 0.33/ 0.5/ 1/ 2/ 3/ 4/ 5 s - Transmission Type: Unicast/ Multicast
JPEG	- Image Quality: 10 steps - Refresh Interval: 0.1 fps - 30 fps (JPEG frame rate will be restricted when displaying both JPEG and H.264 images.) - Transmission Type: Pull/ Push
Audio Compression	G.726 (ADPCM) 32 kbps/ 16 kbps, G.711 64 kbps/ AAC-LC*4 64 kbps/ 96 kbps/ 128 kbps
Audio transmission/ reception	Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex)
Supported Protocol	- IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
FTP Client	Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available.)
Maximum concurrent access number	Up to 14 users (Depends on network conditions)
Cellular Phone Compatibility	JPEG image, AUX control (by access level)
Mobile Terminal Compatibility	iPad, iPhone, iPod touch (iOS 4.2.1 or later), Android mobile terminals
Alarm
Alarm Source	3 terminals input, VMD, Command alarm
Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output
Alarm Log	With SDXC/SDHC/SD memory card: 50,000 logs
Schedule	Alarm/ VMD/ Access permission/ H.264 recording/ Scene file/ FTP periodic image transmission
Input/Output
Monitor Output (for adjustment)	VBS: 1.0 V [p-p]/ 75 Ω, NTSC/ PAL composite, RCA jack
Microphone/Line Input	ø3.5 mm stereo mini jack Input impedance: Approx. 2 kΩ (unbalanced) - For microphone input: Recommended applicable microphone: Plug-in power type Supply voltage: 2.5 V ±0.5 V Recommended sensitivity of microphone: –48 dB±3 dB (0 dB=1 V/Pa, 1 kHz) - For line input: Input level: Approx. –10 dBV
Audio Output	ø3.5 mm stereo mini jack Output impedance: Approx. 600 Ω (unbalanced) / Output level: –20 dBV Can be used as the monitor output by switching the audio/monitor output plug.
External I/O Terminals	ALARM IN1 (DAY/NIGHT IN), ALARM IN2 (ALARM OUT), ALARM IN3 (AUX OUT, DAY/NIGHT OUT)
Input/Output
Monitor Output (for adjustment)	VBS: 1.0 V [p-p]/ 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera
Audio input	ø3.5 mm stereo mini jack Input impedance: Approx. 2 kΩ (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 2.5 V ±0.5 V
Audio Output	ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced)
External I/O Terminals	ALARM IN1(Alarm input 1/ Black & white input/ Auto time adjustment input), ALARM IN2 (Alarm input 2/ ALARM OUT), ALARM IN3(Alarm input 3/ AUX OUT) (x1 for each)
General
Safety	UL (UL60950-1, UL60950-22), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1
EMC	FCC (Part15 ClassA), ICES003 ClassA, EN55023 ClassB, EN55022 ClassB, EN55024
Power Source and Power Consumption	DC12V: 1050 mA/ Approx. 12.6 W PoE (IEEE802.3af compliant)/ PoE DC48V : 265 mA/ Approx. 12.95W (Class 0 device)
Ambient Operating Temperature	–45 °C to +50 °C {–49 °F to 122 °F}
Ambient Operating Humidity	10 to 90 % (no condensation)
Impact Protection	Compliant with IK10 (IEC 62262)
Water and Dust Resistance	Main body: IP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant
Dimensions	When directly mounting the camera to a ceiling or wall 131 mm {5-5/32 inches} (W), 130 mm {5-1/8 inches} (H), 380 mm {1ft 2-31/32 inches} (D) When using the adapter box 133 mm {5-1/4 inches} (W), 133 mm {5-1/4 inches} (H), 420 mm {1ft 4-17/32 inches} (D)
Mass (approx.)	When directly mounting the camera to a ceiling or wall: Approx. 2.6 kg {5.73 lbs} When using the adapter box: Approx. 3.1 kg {6.82 lbs}
Finish	Main body: Aluminum die cast or resin, metallic silver Transparent section of front cover: Polycarbonate resin, Clear (with rain wash coating)

- Xuất xứ: Trung Quốc.

- Bảo hành: 12 tháng.
