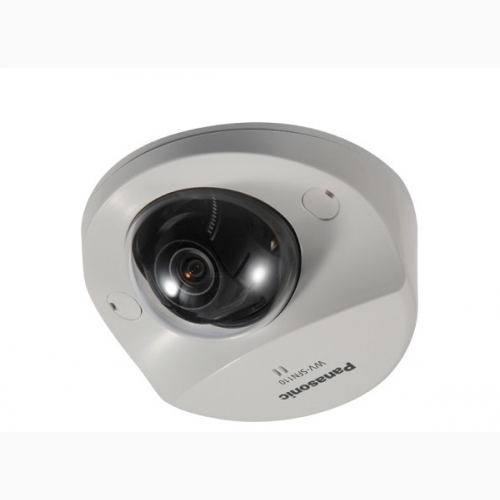

Camera IP PANASONIC WV-SFN110
Camera IP PANASONIC WV-SFN110
- Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
- Độ phân giải camera ip: 1.3 Megapixel.
- Tốc độ khung hình: Lên đến 30 fps.
- Ống kính: 2.8mm.
Camera IP PANASONIC WV-SFN110
- Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
- Độ phân giải camera ip: 1.3 Megapixel.
- Tốc độ khung hình: Lên đến 30 fps.
- Ống kính: 2.8mm.
- Độ nhạy sáng tối thiểu: Color: 0.04 x, BW: 0.03lx.
- Chuẩn nén hình ảnh: H.264/JPEG.
- Nhiệt độ hoạt động: 0°C to 40°C.
- Nguồn điện: PoE (IEEE802.3af compliant) 48VDC: 90 mA/Approx. 4.3W (Class 2 device).
Đặc tính kỹ thuật
Model | WV-SFN110 |
Camera | |
Image Sensor | Approx. 1/3 type MOS image sensor |
Scanning Mode | Progressive |
Scanning Area | 4.86 mm (H) x 3.65 mm (V) {3/16 inches (H) x 5/32 inches (V)} |
Minimum Illumination | Color: 0.04 lx (F2.3, Maximum shutter: Off (1/30s), AGC: High) 0.003 lx (F2.3, Maximum shutter: Max. 16/30s, AGC: High) BW: 0.03 lx (F2.3, Maximum shutter: Off (1/30s), AGC: High) 0.002 lx (F2.3, Maximum shutter: Max. 16/30s, AGC: High) |
White Balance | WC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
Light Control Mode | ELC/ Indoor scene 50 Hz/ Indoor scene 60 Hz |
Super Dynamic | On (High)/ On (Normal)/ Off |
Dynamic range | 122 dB typ. (Super Dynamic: On) |
Face Super Dynamic | On/ Off (only when Super Dynamic: On) |
Adaptive Black Stretch | On/ Off (only when Super Dynamic: Off) |
Back light compensation (BLC) | On/ Off (only when Super Dynamic: Off) |
Fog compensation | On/ Off (only when Super Dynamic/ Adaptive black stretch: Off) |
High light compensation (HLC) | On/ Off (only when Super Dynamic/ Back light compensation (BLC): Off |
AGC | On (High)/ On (Mid)/ On (Low)/ Off |
Maximum shutter | max. 1/10,000 s, max. 1/4,000 s, max. 1/2,000 s, max. 1/1,000s, max. 1/500 s, max. 1/250 s, max. 1/120 s, max. 1/100 s, max. 2/120 s, max. 2/100 s, max. 3/120 s, max. 3/100 s, max. 1/30 s, max. 2/30 s, max. 4/30 s, max. 6/30 s, max. 10/30 s, max. 16/30 s |
Day/Night (Electrical) | Off / Auto |
Digital Noise Reduction | High/ Low |
Video Motion Detection | On/ Off, 4 areas available |
Privacy Zone | On/ Off (up to 8 zones available) |
VIQS | On/ Off (up to 8 zones available) |
Camera Title (OSD) | Up to 20 characters (alphanumeric characters, marks), On/ Off |
Lens | |
Focal Length | 2.8 mm {1/8 inches} |
Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
Zoom ratio | x1 2x Extra zoom |
Angular Field of View | [16 : 9 mode] Horizontal: 100° Vertical: 55° [4 : 3 mode] Horizontal: 100° Vertical: 73° |
Maximum aperture ratio | 1 : 2.3 |
Focus Distance | 0.5 m - ∞ |
Adjusting Angle | |
Adjusting Angle | - Installing on a ceiling Horizontal: –20° to +20° Vertical: –20° to 0° (right under) to +90° (right beside) - Installing on a wall Horizontal: +90° to –90° Vertical: –20° to 0° (right beside) to +90° (right under) |
Browser GUI | |
Camera Control | Brightness |
Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available |
Camera Title | Up to 20 alphanumeric characters |
Clock Display | Time: 12H/24H/Off, Date: 5 formats on the browser, Summer time (Manual) |
One Shot Capture | A still picture will be displayed on a newly opened window |
SD Memory Data Download | Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded |
GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Chinese, Russian, Japanese |
System Log | Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs |
Supported OS | Microsoft® Windows® 10 Microsoft® Windows® 8.1 Microsoft® Windows® 8 Microsoft® Windows® 7 |
Supported Browser | Windows® Internet Explorer® 11 (32 bit) Windows® Internet Explorer® 10 (32 bit) Windows® Internet Explorer® 9 (32 bit) Windows® Internet Explorer® 8 (32 bit) Safari*, Google Chrome*, Mozilla Firefox* * with limitations in the part of setting screen |
Network | |
Network IF | 10Base-T/ 100Base-TX, RJ45 connector (female) |
Image Resolution H.264/JPEG | - 1.3 mega pixel [16 : 9]: 1,280 x 720/ 640 x 360/ 320 x 180/ 160 x 90 - 1.3 mega pixel [4 : 3]: 1,280 x 960/ 800 x 600/ VGA/ 400 x 300/ QVGA/ 160 x 120 |
H.264 | - Transmission Mode: Constant bit rate/ Variable bit rate/ Frame rate/ Advanced VBR - Image Quality: Low/ Normal/ Fine 0 Super fine/1 Fine/2/ 3/ 4/ 5 Normal/ 6/ 7/ 8/ 9 Low - Smart Coding mode: On (Low/ Mid/ High)/ Off (Only when 'Variable bit rate' is selected.) - Transmission Type: Unicast/ Multicast |
JPEG | - Image Quality: 10 steps - Refresh Interval: 0.1 fps - 30 fps - Transmission Type: Pull/ Push |
Cropping function | Off/ JPEG (1)/ JPEG (2)/ JPEG (3)/ H.264 (1)/ H.264 (2)/ H.264 (3)/ H.264 (4)/ H.264 (all) Alarm action On/ Off |
Audio compression method | G.726 (ADPCM) 32 kbps/ 16 kbps, G.711 64 kbps, AAC-LC 64 kbps, AAC-LC (HIGH QUALITY) 64 kbps/ 96 kbps/ 128 kbps |
Bandwidth control | 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps |
Supported Protocol | - IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, DiffServ - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, DiffServ |
FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available.) |
Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
SDXC/SDHC/SD Memory Card(Option) | Manufactured by Panasonic (SD speed class 4 or higher) SDXC memory card: 64 GB, 128 GB SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB SD memory card: 2 GB (except miniSD card and microSD card) |
Cellular Phone Compatibility | JPEG image |
Mobile Terminal Compatibility | iPad, iPhone, iPod touch(iOS 4.2.1 or later), Android mobile terminals |
Alarm | |
Alarm Source | VMD, Command alarm, Audio detection alarm |
Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output |
Alarm Log | With SDXC/SDHC/SD memory card: 5,000 logs |
Schedule | VMD |
General | |
Safety/EMC Standard | UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 FCC Part15 ClassA, ICES003 ClassA, EN55022 ClassB, EN55024 |
Power Source and Power Consumption | PoE (IEEE802.3af compliant) 48 VDC: 90 mA/ Approx. 4.3W (Class 2 device) |
Ambient Operating Temperature | 0 °C to +40 °C {32 °F to 104 °F} |
Ambient Operating Humidity | 10 % to 90 % (no condensation) |
Built-in microphone | Nondirectional electret condenser microphone |
Dimensions | ø104 mm × 47 mm (H) {ø4-3/32 inches x 1-27/32 inches (H)} Dome radius 54 mm {2-1/8 inches} |
Mass (approx.) | Approx. 260 g {0.57 lbs} |
Finish | Main body: ABS resin, sail white Dome cover: Acrylic resin, Clear |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
- Mua tại website: Xem và chọn mẫu, click ĐẶT MUA VÀ GIAO HÀNG TẬN NƠI và để lại thông tin như số điện thoại, email, địa chỉ giao hàng, chúng tôi sẽ liên lạc xác nhận đơn hàng với quý khách trong vòng 1-2 giờ để tránh trường hợp bán cho nhiều người cùng một sản phẩm. Theo nguyên tắc người đặt hàng trước sẽ là chủ sở hữu của sản phẩm đó.
- Mua tại cửa hàng công ty: Khách hàng mua trực tiếp từ cửa hàng đặt trước 10% giá trị sản phẩm, chúng tôi sẽ vận chuyển hàng tới địa chỉ đã được cung cấp và thu tiền sau khi hàng đã được kiểm tra và xác nhận.
