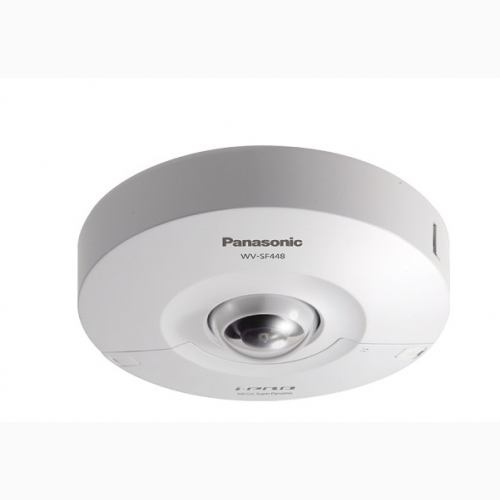

Camera IP PANASONIC WV-SF448E
Camera IP PANASONIC WV-SF448E
- Cảm biến hình ảnh: 1/3 type MOS Sensor.
- Độ phân giải camera ip: Approx. 3.1 megapixels.
- Tốc độ khung hình: Lên đến 30 fps.
Camera IP PANASONIC WV-SF448E
- Cảm biến hình ảnh: 1/3 type MOS Sensor.
- Độ phân giải camera ip: Approx. 3.1 megapixels.
- Tốc độ khung hình: Lên đến 30 fps.
- Ống kính: 0.837 mm.
- Độ nhạy sáng tối thiểu: Color: 1.5lx, BW: 1.2lx.
- Chuẩn nén hình ảnh: H.264/ JPEG.
- Nguồn điện: DC12V, PoE 48V.
Đặc tính kỹ thuật
Model | WV-SF448E |
Camera | |
Image Sensor | 1/3 type MOS image sensor |
Effective Pixels | Approx. 3.1 Megapixels |
Scanning Mode | Progressive |
Scanning Area | 4.51 mm (H) × 3.38 mm (V) {3/16 inches (H) x 1/8 inches (V)} |
Minimum Illumination | Color: 1.5 lx (F2.4, Auto slow shutter: Off (1/30s), Gain:On (High)) Color: 0.1 lx (F2.4, Auto slow shutter: Max. 16/30s, Gain: On (High)) BW: 1.2 lx (F2.4, Auto slow shutter: Off (1/30s), Gain: On(High)) BW: 0.08 lx (F2.4, Auto slow shutter: Off (16/30s), Gain: On (High)) |
White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
Light Control Mode | Indoor scene (50 Hz/ 60 Hz)/ ELC |
Shutter Speed | With Super Dynamic On ELC (1/30 s) With Super Dynamic Off ELC (1/30 s), ELC (3/100 s), ELC (3/120 s), ELC (2/100 s), ELC (2/120 s), ELC (1/100 s), ELC (1/120 s), ELC (1/250 s), ELC (1/500 s), ELC (1/1,000 s), ELC (1/2,000 s), ELC (1/4,000 s), ELC (1/10,000 s) |
Super Dynamic | On/ Off |
Dynamic Range | 52dB typ. (only when Super Dynamic: On) |
Adaptive Black Stretch | On/ Off (only at Super-Dynamic Off) |
AGC | On (High)/ On (Mid)/ On (Low)/ Off |
Electronic Sensitivity UP | Off (1/30 s), Max. 2/30 s, Max. 4/30 s, Max. 6/30 s, Max. 10/30 s, Max. 16/30 s |
Day & Night (Electrical) | Off / Auto |
Digital Noise Reduction | High/ Low |
Video Motion Detection | On/ Off, 4 areas available |
Auto mode | Auto pan/ Preset sequence Auto mode can only be used when the image type is Quad PTZ or Single PTZ. |
Self return | 10s/ 20s/ 30s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min Self return can only be used when the image type is Quad PTZ or Single PTZ. |
Privacy Zone | On/ Off (up to 4 zones available) |
Privacy Mode | On/ Off |
VIQS | On/ Off (up to 2 areas available) However, the VIQS function is not supported when 'Quad PTZ', Single PTZ' or 'Quad streams' are selected |
Camera Title (OSD) | Up to 20 characters (alphanumeric characters, marks), On/Off However, you can specify characters to be displayed on each of the four screens when 'Quad streams' is selected. |
Lens | |
Focal Length | 0.837 mm |
Angular Field of View | Horizontal: 182°, Vertical: 176° |
Maximum Aperture Ratio | 1 : 2.4 (Fixed) |
Focusing Range | 0.3 m - ∞ |
Browser GUI | |
Camera Control | Pan/Tilt/Digital Zoom, Preset, Auto Mode, Self Return, Fisheye Control, Brightness, AUX On / Off |
Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available |
Digital Zoom | 1x, 2x, 4x controlled by browser GUI (Panorama, Double Panorama, Fisheye mode) 1x - 4x (Quad PTZ or Single PTZ mode |
Camera Title | Up to 20 alphanumeric characters |
Clock Display | Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) |
Alarm Control | Reset |
One Shot Capture | A still picture will be displayed on a newly opened window. |
Audio | - Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High - Audio Output: On/ Off Volume adjustment: Low/ Middle/ High |
SD Memory Data Download | Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded |
GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
System Log | Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs |
Supported OS | Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7, Microsoft® Windows Vista®, Microsoft® Windows® XP SP3 |
Supported Browser | Windows® Internet Explorer®11 (32 bit), Windows® Internet Explorer®10 (32 bit), Windows® Internet Explorer® 9 (32 bit), Windows® Internet Explorer® 8 (32 bit), Windows® Internet Explorer® 7 (32 bit), Microsoft® Internet Explorer® 6 SP3 |
Network | |
Network IF | 10Base-T/ 100Base-TX, RJ-45 connector (female) |
Audio Compression | G.726 (ADPCM) 32 kbps/ 16 kbps, G.711 64 kbps |
Audio Mode | Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
Authentication for Audio | Level 1 only/ Level 2 higher/ All users |
Total Bit Rate | 64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps/ Unlimited |
Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SD memory card is available.) |
No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
SDXC/SDHC/SD Memory Card (Option) | H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC JPEG recording: Manual REC/ Alarm REC (Post)/ Backup upon network failure Compatible SD (SDHC/SDXC) card: Panasonic 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
Cellular Phone Compatibility | JPEG image, AUX control (by access level) |
Mobile Terminal Compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later) Android mobile terminals |
Alarm | |
Alarm Source | 3 terminals input, VMD, Command alarm |
Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notication, Indication on browser, FTP image transfer, Panasonic protocol output, HTTP notification |
Alarm Log | With SDXC/SDHC/SD memory card: 5,000 logs, without SDXC/SDHC/SD memory card: 1,000 logs |
Schedule | Alarm/ VMD/ Access permission/ H.264 recording |
Input/Output | |
Microphone/Line Input | Internal microphone, ø3.5 mm monaural mini jack, Input impedance: Approx. 2 kΩ - For microphone input: Applicable microphone: Plug-in power type, Supply voltage: 2.5 V ±0.5 V - For line input: Input level: Approx. –10 dBV |
Audio Output | ø3.5 mm stereo mini jack (monaural output), Output impedance: Approx. 600 Ω, Line level |
External I/O Terminals | ALARM IN 1/ PRIVACY ACTION IN, ALARM IN 2/ ALARM OUT, ALARM IN 3/ AUX OUT (x1 for each) |
General | |
Mounting method | Ceiling/ Wall/ Tripod |
Safety/EMC Standard | CE, IEC60950-1 (EN55022 ClassB, EN55024) |
Power Source and Power Consumption | 12VDC, PoE (IEEE802.3af compliant) 12 VDC: 610 mA/ 7.3W PoE 48V: 140 mA/ 6.7W (Class 0 devices) FOR UL LISTED MODEL(S), ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY |
Ambient Operating Temperature | –10 °C to +50 °C {14 °F to 122 °F} |
Ambient Operating Humidity | Less than 90% (no condensation) |
Shock Resistance | Compliant with 20 J (IEC 60068-2-75)/IK10 (IEC 62262) |
Dimensions | ø150 mm x 50.5 mm (H) {ø5-29/32 inches x 2 inches (H)} |
Mass (approx.) | Main body: 560 g {1.23 lbs} |
Finish | Main body: Aluminum die cast, sail white Dome section: Clear polycarbonate resin |
