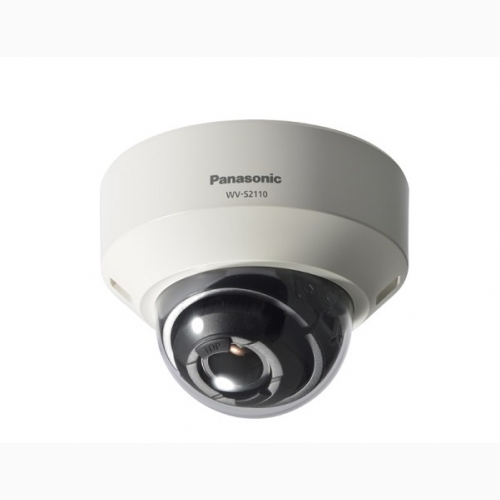

Camera IP PANASONIC WV-S2110
Camera IP PANASONIC WV-S2110
- Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
- Độ phân giải camera ip: 1.3 Megapixel.
- Tốc độ khung hình: 60 fps.
Camera IP PANASONIC WV-S2110
- Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
- Độ phân giải camera ip: 1.3 Megapixel.
- Tốc độ khung hình: 60 fps.
- Độ nhạy sáng tối thiểu: Color: 0.008lx, BW: 0.007lx.
- Chuẩn nén hình ảnh: H.265/ H.264/ JPEG (MJPEG).
- Nguồn điện:
+ DC48V/110mA, Approx. 5.3W (Class 0 device).
Đặc tính kỹ thuật
Model | WV-S2110 |
Camera | |
Image Sensor | Approx. 1/3 type MOS image sensor |
Minimum Illumination | Color: 0.008 lx, BW: 0.007 lx (F1.6, Maximum shutter: Off (1/30s), AGC: 11) Color: 0.0005 lx, BW: 0.00044 lx (F1.6, Maximum shutter: max. 16/30s, AGC: 11) |
White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
Shutter Speed | 1/30 Fix to 1/10000 Fix *1/30 Fix to 2/120 Fix is available during 30 fps mode only. *1/60 Fix is available during 60 fps mode only |
Intelligent Auto | On/ Off |
Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
Dynamic Range | 144 dB (Super Dynamic: On) |
Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
Back light compensation/High light compensation | BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off) |
Fog compensation | On/ Off (only when Intelligent auto/ auto contrast adjust: Off) |
Maximum gain (AGC) | The level can be set in the range of 0 to 11. |
Day/ Night (Electrical) | Off/ On |
Digital Noise Reduction | The level can be set in the range of 0 to 255. |
Video Motion Detection (VMD) | On/ Off, 4 areas available |
Intelligent VMD (i-VMD) | Type 4 *Bundled License |
Stabilizer | On/ Off (available only in the 30 fps mode) |
Privacy Zone | On/ Off (up to 8 zones available) |
Image rotation | 0°/ 90°/ 180°/ 270° |
Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
Focus Adjustment | Auto back focus/ Manual |
Lens | |
Focal length | 2.8 - 10 mm {1/8 inches - 13/32 inches} |
Zoom ratio | 3.6x (Manual zoom/ Motorized focus) |
Angular Field of View | - [16 : 9 mode] Horizontal: 30° (TELE) – 110° (WIDE) Vertical: 17° (TELE) – 59° (WIDE) - [4 : 3 mode] Horizontal : 25° (TELE) – 90° (WIDE) Vertical : 19° (TELE) – 66° (WIDE) |
Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 1 : 3.4 (TELE) |
Focusing Range | 0.3 m {11-13/16 inches} – ∞ |
Adjusting Angle | |
Adjusting Angle | Horizontal: -240 to +120°, Vertical: ±85°, Yaw: ±100° |
Browser GUI | |
Camera Control | Brightness, AUX On/Off |
GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Network | |
Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
Resolution H.265/ H.264/ JPEG (MJPEG) | - 1.3 Megapixel [16 : 9] (30/60 fps) 1,280 x 720/ 640 x 360/ 320 x 180 - 1.3 Megapixel [4 : 3] (30 fps) 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240 |
H.265/H.264 | - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort - Transmission Type: Unicast/ Multicast |
JPEG | Image Quality: 10 steps |
Smart Coding | - Smart Facial Coding: On (Smart Facial Coding*)/ On (Auto VIQS)/ Off *Smart Facial Coding is only available with Stream(1). - GOP (Group of pictures): On (Advanced)*/ On (Mid)/ On (Low)/ Off *On(Advanced) is only available with H.265. |
Audio Compression | G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
Supported Protocol | - Pv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
Mobile Terminal Compatibilit | iPad, iPhone, Android mobile terminals |
Alarm | |
Alarm Source | VMD alarm, Command alarm, Audio detection alarm |
Alarm Actions | E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output |
Input/ Output | |
Monitor Output (for adjustment) | VBS: 1.0 V [p-p]/ 75Ω, composite, ø3.5 mm mini jack An NTSC or PAL signal can be outputted from camera |
Built-in microphone | Nondirectional electret condenser microphone |
General | |
Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device: DC48 V 110 mA, Approx. 5.3 W (Class 0 device) |
Ambient Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
Ambient Operating Humidity | 10 to 90 % (no condensation) |
Dimensions | ø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)} Dome radius 40 mm {1-9/16 inches} |
Mass (approx.) | Approx. 560 g {1.23 lbs} |
Finish | Main body: ABS resin, sail white Dome section: Clear acrylic resin |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
- Mua tại website: Xem và chọn mẫu, click ĐẶT MUA VÀ GIAO HÀNG TẬN NƠI và để lại thông tin như số điện thoại, email, địa chỉ giao hàng, chúng tôi sẽ liên lạc xác nhận đơn hàng với quý khách trong vòng 1-2 giờ để tránh trường hợp bán cho nhiều người cùng một sản phẩm. Theo nguyên tắc người đặt hàng trước sẽ là chủ sở hữu của sản phẩm đó.
- Mua tại cửa hàng công ty: Khách hàng mua trực tiếp từ cửa hàng đặt trước 10% giá trị sản phẩm, chúng tôi sẽ vận chuyển hàng tới địa chỉ đã được cung cấp và thu tiền sau khi hàng đã được kiểm tra và xác nhận.
