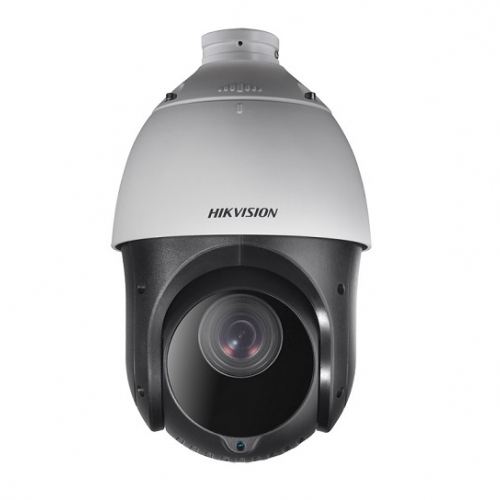

Camera IP HIKVISION DS-2DE4215IW-DE
Camera IP HIKVISION DS-2DE4215IW-DE
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 2.0 Megapixel.
- Ghi hình: 1920 x 1080 25fps/30fps.
- Lấy nét: 5-75 mm.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
Camera IP HIKVISION DS-2DE4215IW-DE
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 2.0 Megapixel.
- Ghi hình: 1920 x 1080 25fps/30fps.
- Lấy nét: 5-75 mm.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Zoom số: 16x.
- Zoom quang: 15x.
- Góc quay: 360°, góc quét: -15°~90° (tự động lật).
- Tốc độ quay: 0.1° - 80°/s, góc quét: 0.1° - 80°/s.
- Tầm quan sát hồng ngoại: 100 mét.
- Độ nhạy sáng: Color: 0.005 Lux@(F1.6, AGC ON), B/W: 0.001 Lux@(F1.6, AGC ON).
- Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lên đến 256GB.
- Hỗ trợ chức năng chống ngược sáng kỹ thuật số DWDR.
- Chức năng giảm nhiễu 3D DNR.
- Chức năng chống ngược sáng HLC
- Chức năng bù sáng Back Light Compensation BLC.
- Hỗ trợ các chức năng khác: Defog/EIS/Regional Exposure/Regional Focus.
- Chức năng cấp nguồn qua mạng PoE.
- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
- Phần mềm giám sát và tên miền miễn phí…
- Nguồn điện cung cấp: 12 VDC.
- Kích thước: Φ 164.5 × 290 mm.
- Trọng lượng: 2 kg.
Đặc tính kỹ thuật
Model | DS-2DE4215IW-DE |
Image Sensor | 1/2.8 inch progressive scan CMOS |
Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
AGC | Auto/Manual |
Shutter Time | 1/1 s to 1/30,000 s |
Day & Night | IR Cut Filter |
Digital Zoom | 16× |
Privacy Mask | 24 programmable privacy masks |
Focus Mode | Auto/Semi-automatic/Manual |
WDR | 120dB |
Lens | |
Focal Length | 5 mm to 75 mm, 15× optical |
Zoom Speed | Approx. 2.4 s (optical lens, wide-tele) |
FOV | Horizontal field of view: 53.8° to 4.0° (wide-tele) Vertical field of view: 31.9° to 2.3° (wide-tele) Diagonal field of view: 60.4° to 4.6°(wide-tele) |
Working Distance | 10 mm to 1500 mm (wide-tele) |
Aperture Range | F1.6 to F3.5 |
IR | |
IR Distance | Up to 100 m |
IR Intensity | Automatically adjusted, depending on the zoom ratio |
PTZ | |
Movement Range (Pan) | 360° endless |
Pan Speed | Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
Movement Range (Tilt) | From -15° to 90° (Auto-flip) |
Tilt Speed | Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
Proportional Zoom | Support |
Presets | 300 |
Patrol Scan | 8 patrols, up to 32 presets for each patrol |
Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
Power-off Memory | Support |
Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
PTZ Position Display | Support |
Preset Freezing | Support |
Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust |
Compression Standard | |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
H.264 Type | Baseline Profile/Main Profile/High Profile |
H.264+ | Support |
H.265 Type | Main Profile |
H.265+ | Support |
Video Bitrate | 32 kbps to 16384 kbps |
Smart Feature | |
Basic Event Detection | Motion Detection, Video Tampering Detection, Exception Detection |
Smart Detection | Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection |
ROI encoding | Main stream, sub-stream and third stream respectively support two fixed areas. |
Image | |
Image Enhancement | HLC/ BLC/ 3D DNR/ Defog/ EIS/ Regional Exposure/ Regional Focus |
Max. Resolution | 1920 × 1080 |
Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1280 × 960, 1280 × 720) |
Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
SVC | Support |
Network | |
Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
Alarm Linkage | Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform |
Simultaneous Live View | Up to 20 channels |
User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
Web Browser | IE 8+, Firefox 30+, Safari 8.0+ web browser |
Interface | |
Network Interface | 1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4) |
General | |
Power | 12 VDC and PoE+ (802.3at, class4) Max.: 18 W (IR light 6 W Max.) |
Working Environment | Working Temperature: -30°C to 65°C (-22°F to 149°F) Working Humidity: ≤ 90% |
Protection Level | IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
Material | ADC12, PC, Glass, SECC |
Dimensions | Φ 164.5 mm × 290 mm (Φ 6.48' × 11.42') |
Weight | Approx. 2 kg (4.41 lb) |
