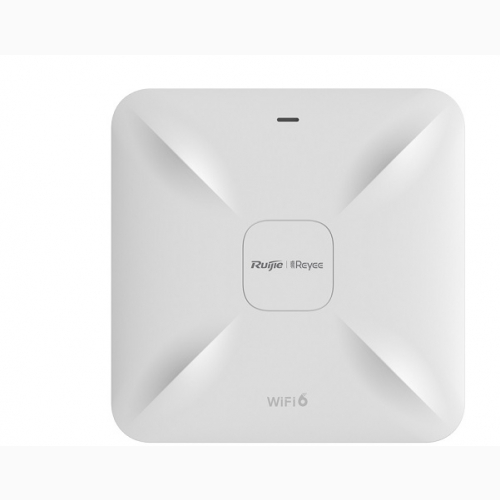

Access Point RUIJIE RG-RAP2260(G)
Access Point RUIJIE RG-RAP2260(G)
- Ruijie Reyee RG-RAP2260(G) is a high-performance entry Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenarios.
- Supports 802.3af/at PoE and 12VDC local power supply.
Access Point RUIJIE RG-RAP2260(G)
- Ruijie Reyee RG-RAP2260(G) is a high-performance entry Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenarios.
- Supports 802.3af/at PoE and 12VDC local power supply.
- The dual LAN ports design facilitates the expansion of third-party devices to meet the needs of more networking scenarios.
- Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocol, RG-RAP2260(G) supports MU-MIMO dual-stream technology and offers built-i n omnidirectional antennas.
- It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 574Mbps at 2.4GHz, 1201Mbps at 5GHz and up to 1775Mbps per AP.
- Its coverage of over 20 meters makes it an ideal choice for many wireless scenarios, especially in offices, commercial industry, hotels, service scenarios, etc.
Specifications
Model | RG-RAP2260(G) |
Hardware specifications | |
Radio | Dual-stream dual-band |
Protocol | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n |
Operating Bands | 802.11b/g/n/ax: 2.4G ~ 2.4835GHz 802.11a/n/ac/ax: 5G: 5.150~5.350GHz,5.725~5.850GHz (country specific) |
Antenna | Internal antennas(2.4G: 3dBi,5G: 3dBi) |
Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
Max Throughput | Up to 574Mbps at 2.4G Up to 1201Mbps at 5G 1.775Gbp per AP |
Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16QAM@24Mbps, 64QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM , 64QAM, 256QAM and 1024QAM OFDMA |
Receive Sensitivity | 11b: -96dBm (1Mbps), -93dBm (5Mbps), -89dBm (11Mbps) 11a/g: -91dBm (6Mbps), -85dBm (24Mbps), -80dBm (36Mbps), -74dBm (54Mbps) 11n: -90dBm (MCS0), -70dBm (MCS7), -89dBm (MCS8), -68dBm (MCS15) 11ac: 20MHz: -88dBm (MCS0), -63dBm (MCS9) 11ac: 40MHz: -85dBm (MCS0), -60dBm (MCS9) 11ac: 80MHz:-85dBm (MCS0), -60dBm (MCS9) 11ax: 80MHz: -82dBm (MCS0), -57dBm (MCS9), -52dBm (MCS11) |
Maximum Transmit Power | 5.725~5.850GHz: ≤20dBm (EIRP) 5.150~5.250GHz: ≤20dBm (EIRP) 2.4~2.4835GHz: ≤20dBm (EIRP) |
Adjustable Power | 1dBm |
Dimensions | 194 × 194 × 35 mm (excluding mounting kits) |
Weight | 0.56kg (excluding mounting kits) |
Service Ports | 2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE |
LED Indicator | Single indicator (green light) |
Power Supply | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3af/802.3at PoE |
Power Consumption | ≤ 15.3W |
Environment | Operating temperature: 0°C~40°C |
Storage temperature: -40°C~70°C | |
Operating humidity: 5%~95%(non-condensing) | |
Storage humidity: 5%~95%(non-condensing) | |
Installation | Ceiling/wall-mountable |
Safety Standard | GB4943, IEC 62368-1 |
EMC Standard | GB9254, EN301489, EN50155, EN50121, EN55032, EN61000, EN55035 |
Vibration Standard | IEC61373 |
Radio Standard | EN300 328, EN301 893 |
MTBF | >400000H |
Software Features | |
Operating Mode | AP mode and routing mode |
WLAN | Maximum number of clients: 512 |
Recommended number of clients: 100 | |
Up to 8 SSIDs | |
Support SSID hiding | |
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID | |
SSID-based and radio-based STA limit | |
Support Layer 2 user isolation | |
Roaming | Support Layer 2 and Layer 3 roaming |
Security | Support PSK authentication |
Support static blacklist and whitelist | |
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption | |
Routing | Support static IP address, DHCP, PPPoE Dial Up |
Management and maintenance | Support unified networking of all network equipment |
Support local or remote management with Ruijie Cloud app | |
Support local management with web | |
Support remote management with Ruijie Cloud platform | |
Platform management features | Automatic RF adjustment via the platform |
Unified configuration via the platform | |
Unified monitoring via the platform |
